Description

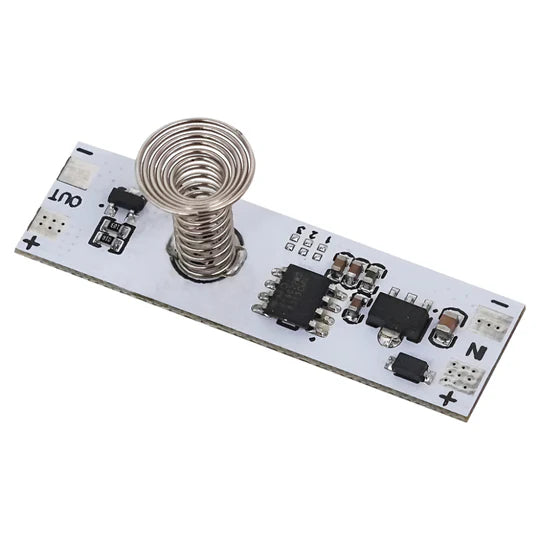

It can replace the mechanical touch button. The module can realize the touch switch control and brightness adjustment of the LED light. The mechanism of the module is simple and the operation is convenient. The design circuit of the module can automatically overcome all kinds of interfaces caused by ambient temperature, humidity, surface sundries and avoid key differences caused by resistance and capacitance error. It is the perfect choice for your product development and upgrading.Load power: 72W (MAX)
Load current: resistive 3A (MAX)
Standby current: 10-15mA.

Technically Details

• Voltage Rating: 5-24V DC
• Current: 3A max
• Control Type: Capacitive touch for precise dimming
• Dimming Type: Stepless dimming
• Material: Durable, high-quality components
• Dimensions (L x W x H): 42mm x 12mm x 14mm.

Features

• Induction principle: touch induction
• Input voltage: DC5V-24V (12V recommended)
• Output voltage: DC5V-24V (12V recommended)
• Load power: 72W (MAX)
• Load current: resistive 3A (MAX)
• Standby current: 10-15mA
• Standby power consumption: ≈0.01W
• Working temperature: -25℃-85℃
• Output frequency: 32KHZ
