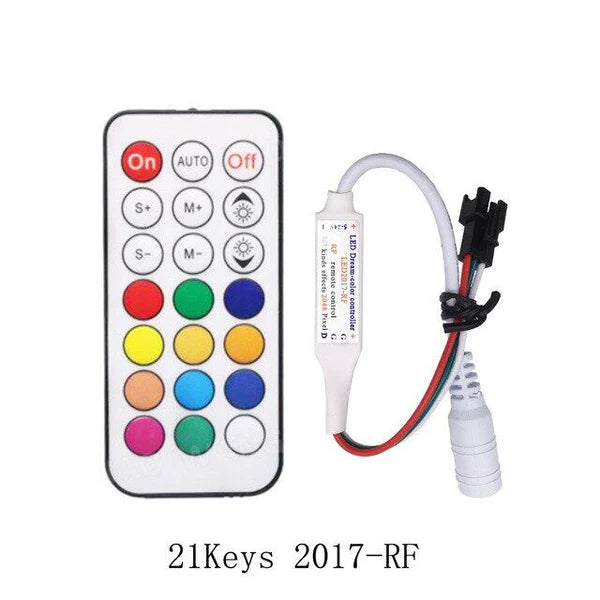

LED2017-RF is a wireless Multicolor LED controller with a radio remote control for RGB LED strips (WS2812, WS2813).
| Voltage | 5-24 V |
| Maximum number of pixels | 2048 |
| Max. remote control distance | 30 m |
| Current consumption | 10 mA |
Note: Use 5v Led if the power supply to your RGB controller is 5v | Use 12v Led if the power supply to your RGB controller is 12v | Use 24v Led if the power supply to your RGB controller is 24v

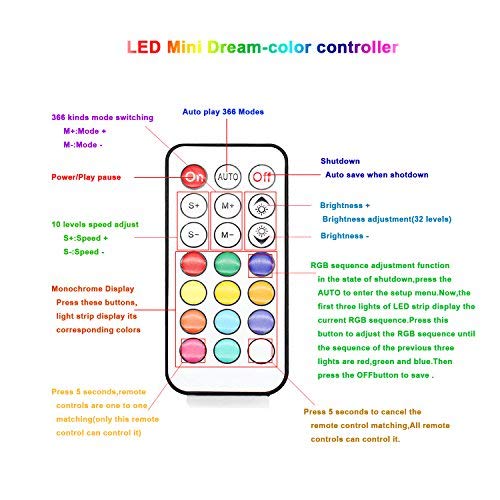

2048 PIXEL ADJUSTMENT METHOD
Maximum number of control pixels: Total 2048 pixels.
We recommend using 300 pixels (Approximately 5 meters of light strip length). Press and hold for 5 seconds to enter the setup menu and press MODE+ and MODE- to adjust the number of LED pixel points. Only adjust 32 points each time. Press the B button to adjust the RGB sequence. (Tips: If you want
to adjust the pixel points from 300 to 2048, you need to press the 'MODE+' key 54 times.)
