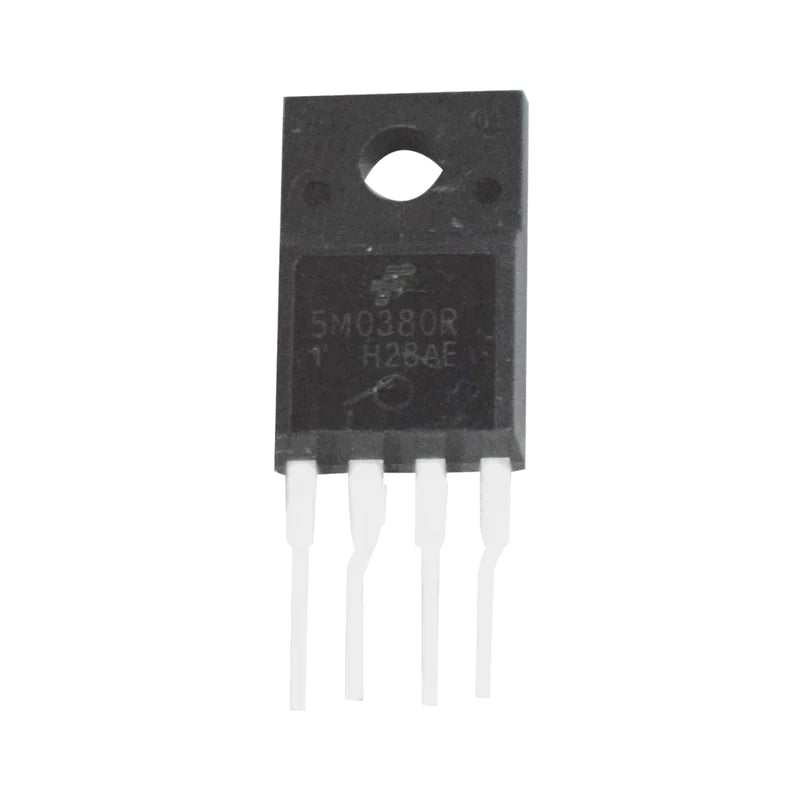

5M0380R 650V, MOSFET (TO-220F-4L)

5M0380R 650V, MOSFET (TO-220F-4L)

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The Fairchild Power Switch(FPS) product series was created specifically. A high voltage power SenseFET and a current mode PWM IC make up the Fairchild Power Switch (FPS). The fixed...
26 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3616
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

The Fairchild Power Switch(FPS) product series was created specifically. A high voltage power SenseFET and a current mode PWM IC make up the Fairchild Power Switch (FPS). The fixed frequency oscillator, the under voltage lock-out, the leading edge blanking, the optimised gate turn-on/turn-off driver, the over-voltage protection, and the temperature-compensated precision current sources are all integrated into the included PWM controller for loop compensation and fault protection. A Fairchild Power Switch (FPS) can decrease the total number of components, design size, and weight while boosting efficiency, productivity, and system dependability when compared to a discrete MOSFET and a PWM controller or an RCC solution. Its fundamental framework is suitable for the It has a total of four pins, and its package is TO-220F-4L.

Applications

• SMPS for VCR, SVR, STB, DVD & DVCD
• SMPS for Printer, Facsimile & Scanner
• Adaptor for Camcorder

Features

• Precision Fixed Operating Frequency (100/67/50kHz)
• Low Start-up Current(Typ. 100uA)
• Pulse by Pulse Current Limiting
• Over Current Protection
• Over Voltage Protection (Min. 25V)
• Internal Thermal Shutdown Function
• Under Voltage Lockout
• Internal High Voltage Sense FET
• Auto-Restart Mode

SPECIFICATIONS
Model 5M0380R
Package TO-220F-4L
Type MOSFET
No of Pins 4
Brand Fairchild
Max Drain Voltage 650V
Drain pulse current 12.0A
Operating Temperature 65 to 150° C
