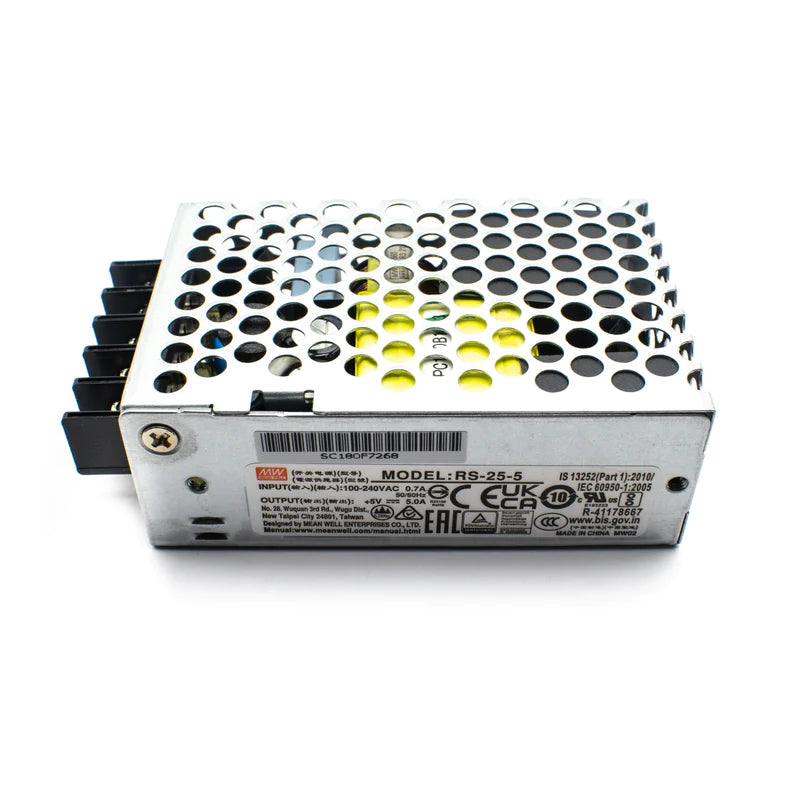

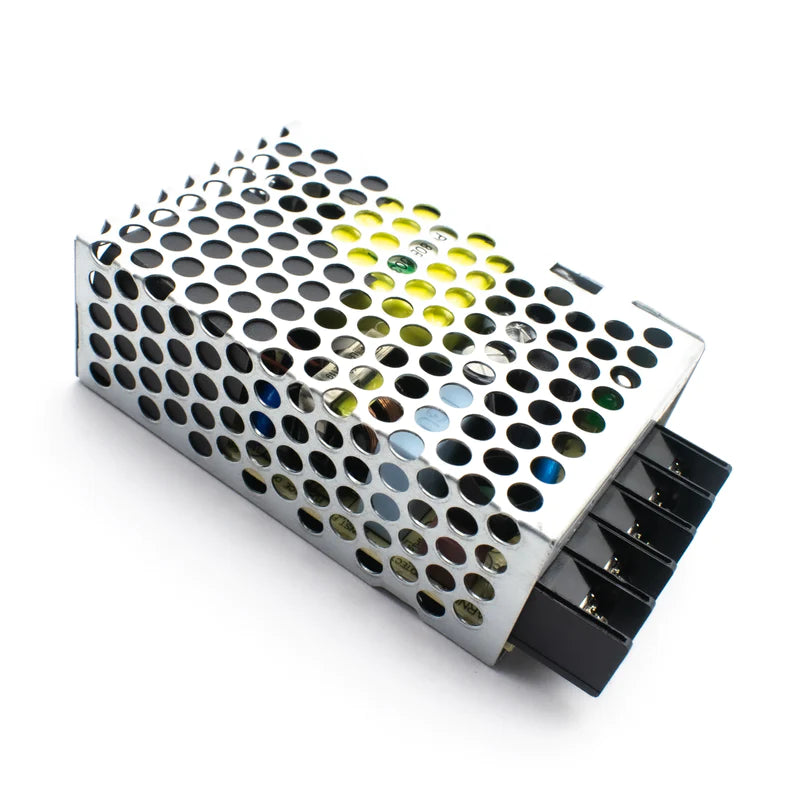

5V 25W Meanwell SMPS (RS-25-5)

5V 25W Meanwell SMPS (RS-25-5)

Description Meanwell's RS-25 series is a 25W single-output enclosed type power supply with 30mm of low profile design. The AC input is  85-264VAC which could be directly supplied from the...
17 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2648
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Meanwell SMPS SMPS
View full product details

Description

Meanwell's RS-25 series is a 25W single-output enclosed type power supply with 30mm of low profile design. The AC input is  85-264VAC which could be directly supplied from the house supplied voltage. The output from SMPS will be 5V. The SMPS has high efficiency up to 78.5%, the design is of metallic mesh case which enhances the heat dissipation of  RS-25 that the whole series operates from -20°C through 70°C under air convection without a fan. It has extremely low no-load power consumption (less than 0.5W), which allows the end system to easily meet the worldwide energy requirement.

RS-25 has complete protection functions and 5G anti-vibration capability; it complies with international safety regulations such as UL60950-1, TUV EN60950-1, EN55022, EN61000-3-2,-3. RS-25 series can be used for many purposes with the best performance from it.

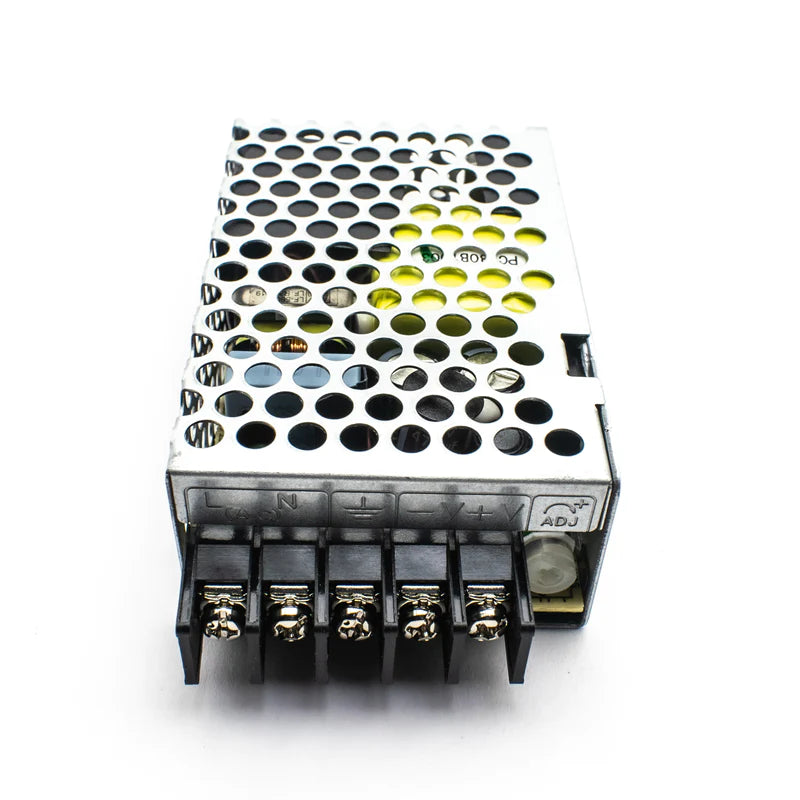

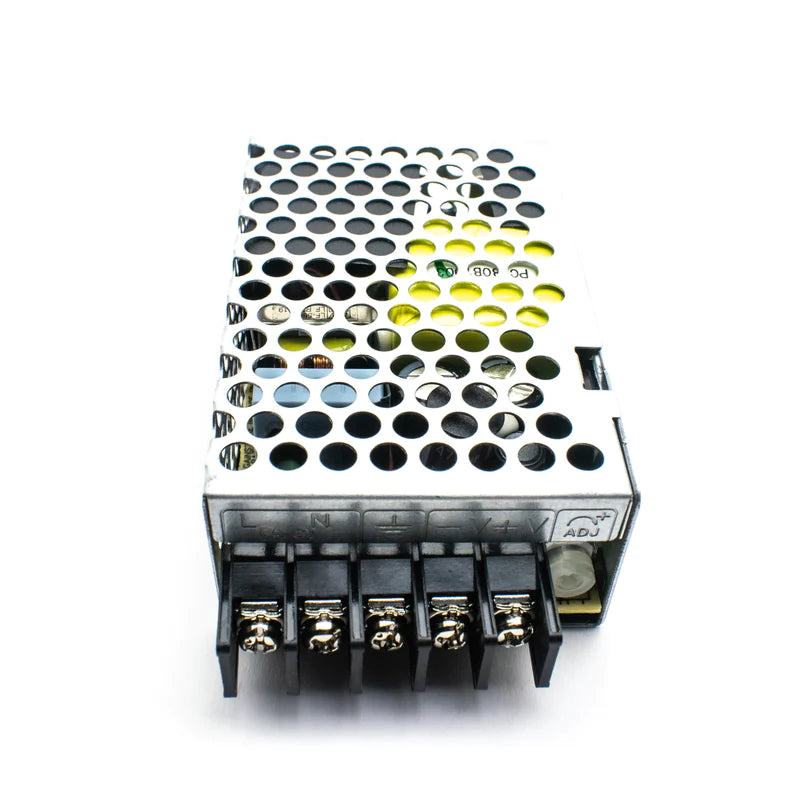

PINOUT:

Pin No. Pin name Description
1,2 AC/L&N Supplied AC Voltage (115 ~ 240VAC)
3 FG GND
4 V- DC OUTPUT -V
5 V+ DC OUTPUT +V (5V)



SPECIFICATIONS
Input Voltage 115V~240V AC
Output Voltage 5V DC
Maximum Output Current 5A
Maximum Power 25W
Efficiency 78.5%
Working Temperature -20°C to 70°C
Size 78x51x30mm
