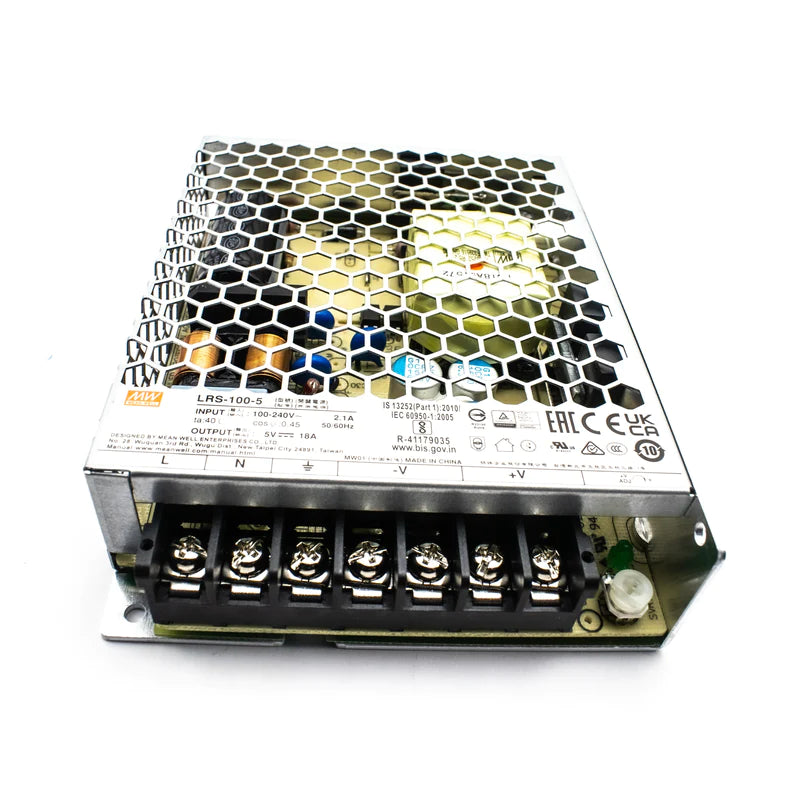

LRS-100 series is a 100W single-output enclosed type power supply with 30mm of low profile design. The AC input is 85~264VAC which could be directly supplied from the house supplied voltage. The output from SMPS will be 5V. The SMPS has high efficiency up to 86%, the design is of metallic mesh case which enhances the heat dissipation of LRS-100 that the whole series operates from -30°C through 70°C under air convection without a fan. It has extremely low no-load power consumption (less than 0.3W), which allows the end system to easily meet the worldwide energy requirement. LRS-100 has the complete protection functions and 5G antivibration capability; it complies with international safety regulations such as TUV EN60950-1, EN60335-1, EN61558-1/-2-16, UL60950-1 and GB4943. LRS-100 series can be used for many purposes with the best performance from it.
Feature
| Model | LRS-100-5 |
| Brand | Meanwell |
| DC Voltage | 5V |
| Rated Current | 18A |
| Rated Power | 90W |
| Ripple & Noise | 100mVp-p |
| Voltage Tolerance | 2% |
| Line Regulation | 0.5% |
| Load Regulation | 1% |
| Setup, Rise Time | 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load |
| Hold Up Time | 55ms/230VAC 10ms/115VAC at full load
|
| Voltage Range | 85 ~ 264VAC 120 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) |
| Frequency Range |
47~63Hz |
| Efficiency |
86% |
| AC Current | 1.9A/115VAC 1.2A/230VAC
|
| Over Load | 110 ~ 150% rated output power Protection type: Hiccup mode, recovers automatically after fault condition is removed |
| Over Voltage |
4.5V~5.5V |
| Working Temperature |
-30°C to 70°C |
| Working Humidity |
20~90% |
| Size |
129*97*30mm (L*W*H) |
