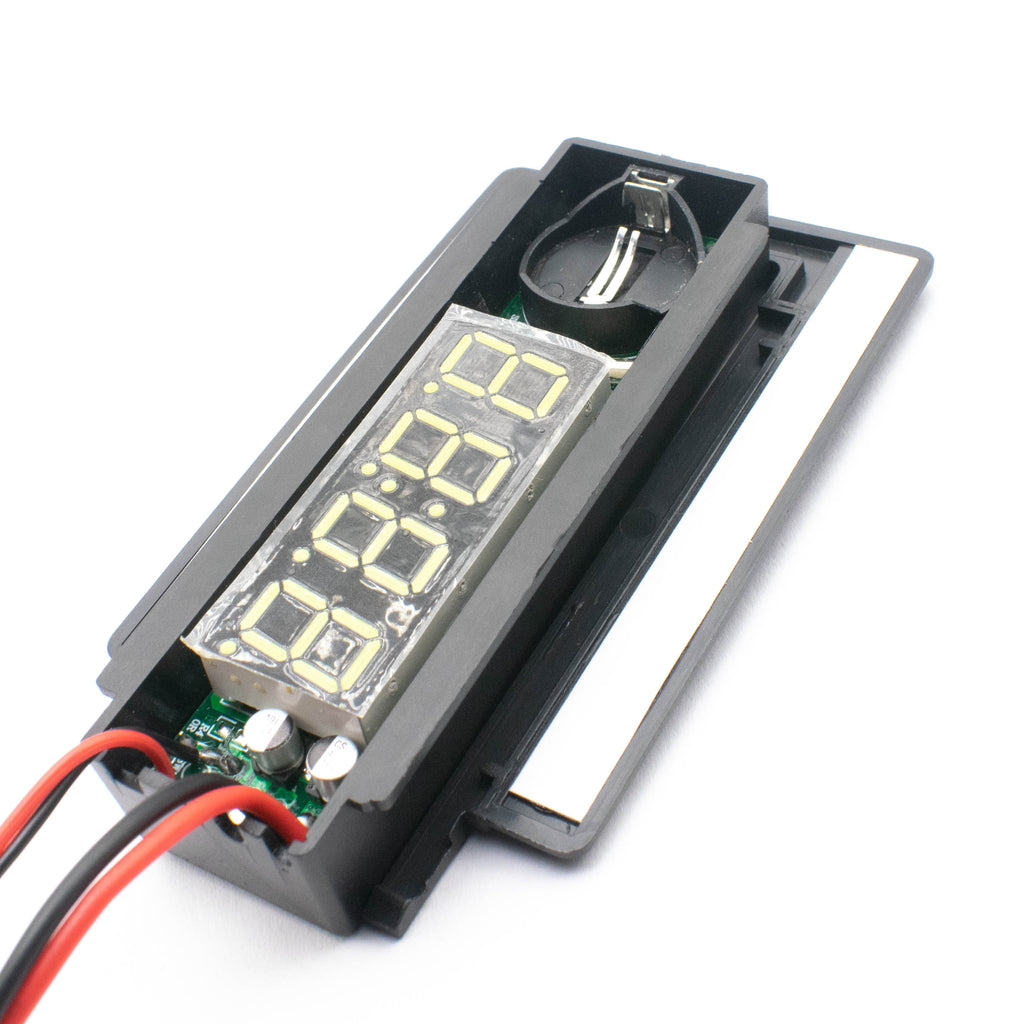

6-12V Digital Clock LED Display for LED Mirror 4 Digit 7 Segment - XD904

6-12V Digital Clock LED Display for LED Mirror 4 Digit 7 Segment - XD904

Description Clock Display is powered by suppling 6-12V input. It shows 24h time just after supplying voltage through input. The battery in the clock display is used to remember the...
23 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2455
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Touch Switch
View full product details

Description

Clock Display is powered by suppling 6-12V input. It shows 24h time just after supplying voltage through input. The battery in the clock display is used to remember the time the last set after the power is off. The switch in the Clock display which is connected through a wire offboard is used to adjust the time of the module. By pressing continuously for 3 seconds the LED of hour starts blinking which indicates it is ready to be adjusted, by pressing the switch again the hours start changing. After selecting the hours press the switch again for 3 seconds so that the minute LED start blinking, adjust the minute by simply pressing the switch. This way time is adjusted in the Clock display. Rather than this, the module has a switch on its cover which does the same work as this switch.

Features

  • Very little weight and small size form factor make it easily fits into any application area.
  • Easy to adjust the time.
  • A CR2032 battery is needed to power the  RTC.
SPECIFICATION
Operating Voltage 6V-12V
Maximum Current 1A
Max Power Consumption 0.36W
Working Temperature -10°C-45°C
Model XD-904
