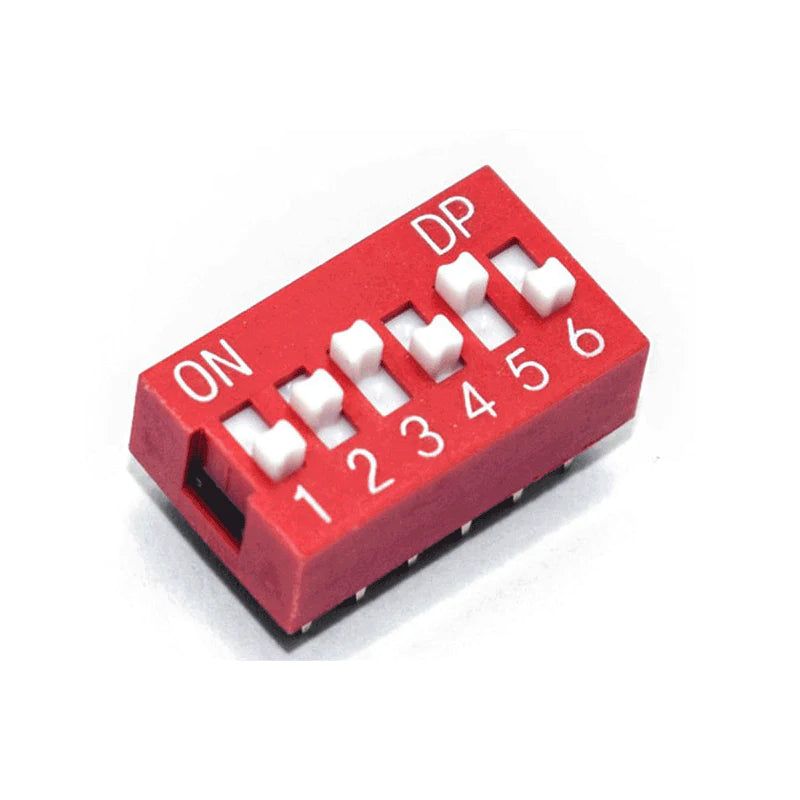

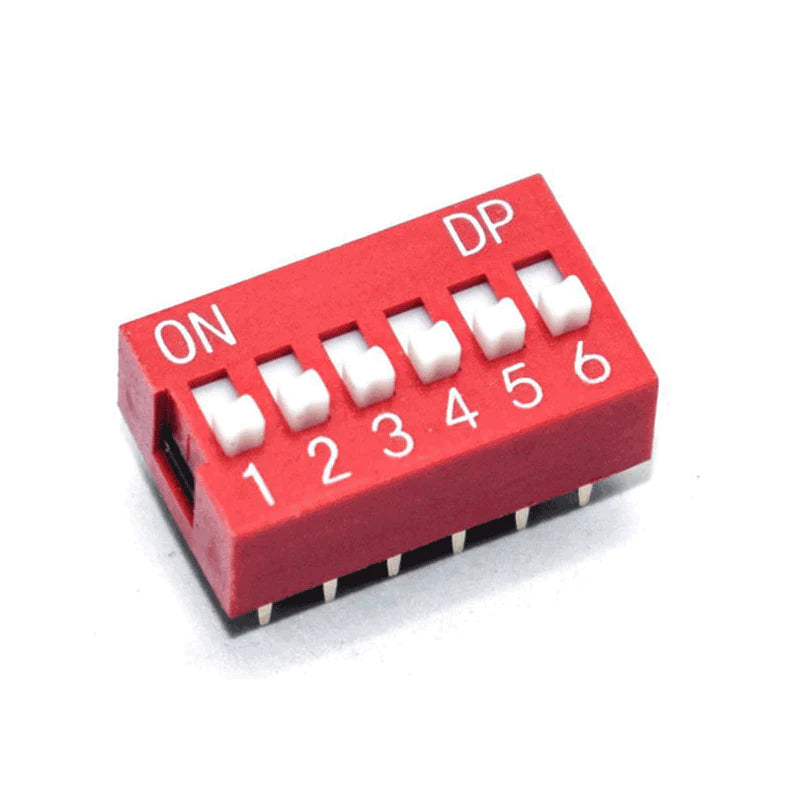

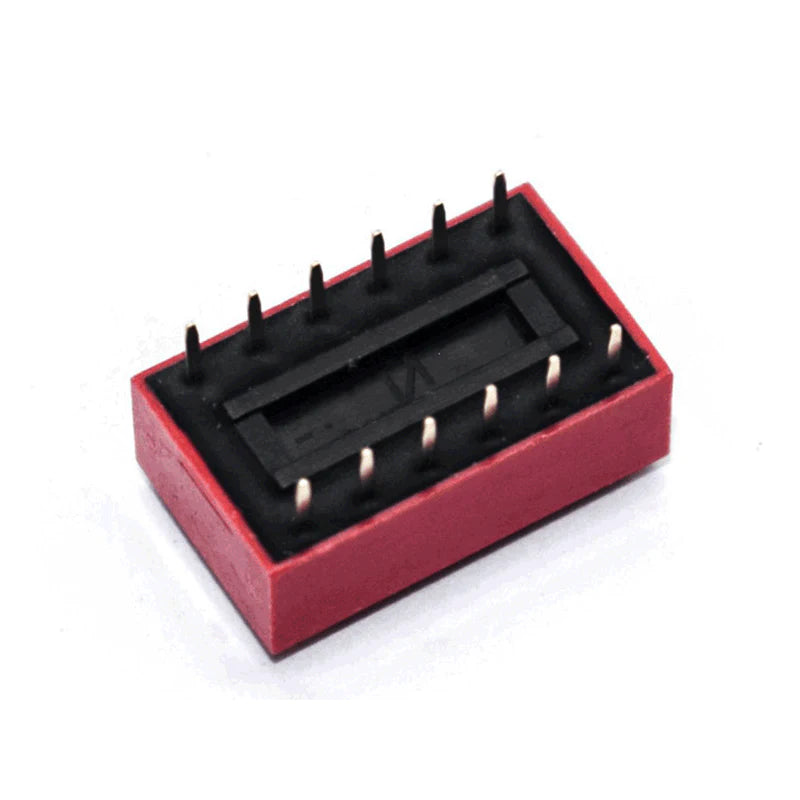

A dual in-line package (DIP) switch is a manual electronic package that is composed of a series of tiny switches. It has a rectangular casing and two parallel rows of connecting terminals. whose position changes the operating mode of a device. DIP switches help configure computer peripherals, such as hard drives, modems, sound cards, and motherboards. This 6 Way DIP SPST Switch is the simplest type of switch in which a single toggle either connects or disconnects a single terminal from other. This switch is designed to be conveniently mounted on printed circuit boards to provide various ranges of input to the electronic device.
| Max. Operating Voltage | 30V DC |
| Max. Operating Current | 150mA |
| Contact Resistance | <100mΩ |
| Operating Temperature | -20°C to 80°C |
| Color | Red and White |
| Pitch | 2.54mm |
| Mounting Type | Through Hole |
| Number of Connecting Pins | 12 |
| Position | 6 |
| Dimension | 16.7x9.8x7.0mm |
