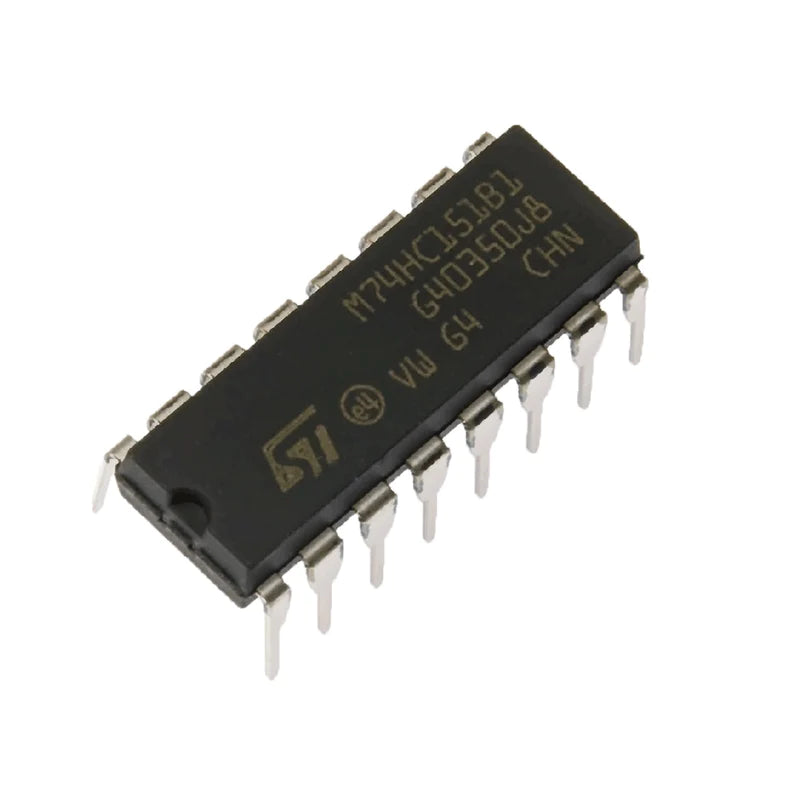

74HC series ICs are High-speed logic gates with very low power consumption that utilize advanced silicon-gate CMOS technology and 74HC151 is one of them. It has balanced propagation delay and transition times. 74HC151 ICs contain a single 8-channel digital multiplexer with binary control input A, B, and C and an Active Low enable input. These three inputs can select the 1 to 8 output line. 74HC151 ICs provide inverting and non-inverting output. The 74HC151 ICs have a wide operating range of VCC from 2 V to 6 V. Maximum current consumption is 80 uA through Icc and 1 uA per input pin. And the propagation delay is 13 ns. They can drive 10 LS-TTL loads at a time. Which means that the output pin of the multiplexer can drive 10 TTL based Low-Power Schottky( LS ) input pins. They can provide 6 mA on outputs at 5 V VCC. They allow inputs and outputs up to VCC. Recommended operating VCC is 5 V. Load Current can reach up to 25 mA per output pin and 50 mA for overall pins in between 0 V to VCC.
| Operating Voltage Range | 2.0 to 6.0 V |
| Package | DIP−16 |
| Input Current | 1 uA |
| Powering Current | 80 uA |
| Output Current at VCC | 6 mA |
| Fan-Out | 10 LS-TTL Load |
| Propagation Delay | 13 ns |
| Temperature Range | -55 °C - 125 °C |
