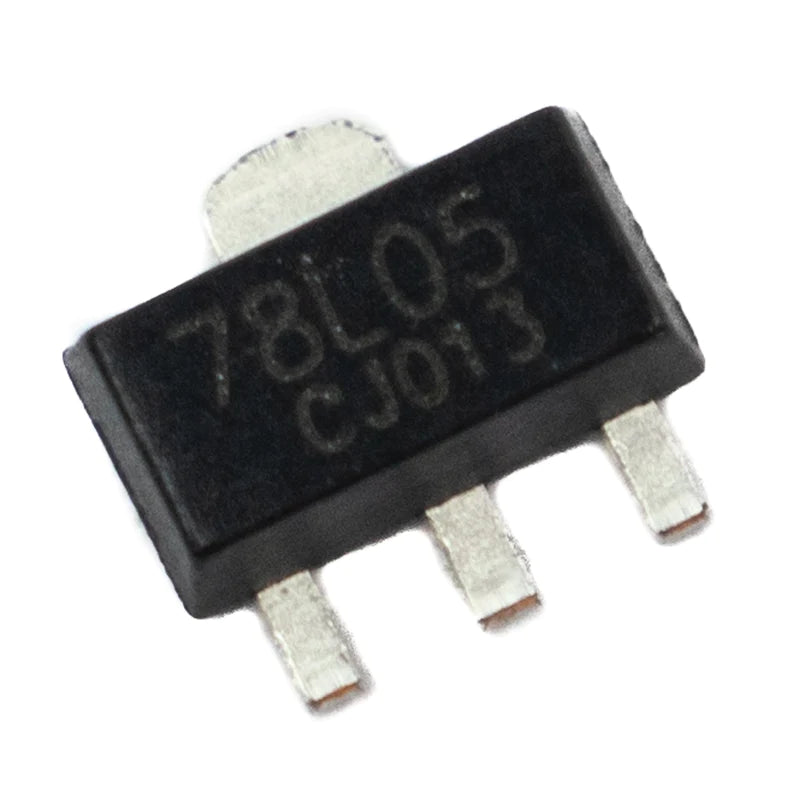

The 78L05 is a monolithic three-terminal positive regulator with internal current limiting, thermal shutdown, and output transistor safe area protection, making it practically indestructible. It is designed to be used as a fixed voltage regulator in a variety of applications, including local on-card control, to eliminate distribution issues caused by wide single-point regulation.
Features
| Model | 78L05 |
| Input Voltage | 30V DC |
| Output Voltage | 5V DC |
| Max. Output Current | 100mA |
| Quiescent Current (Iq) | 5.5mA |
| Supply Current (Max) | 6mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| PSRR | 49dB (120Hz) |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Package | SOT-89-3 |
