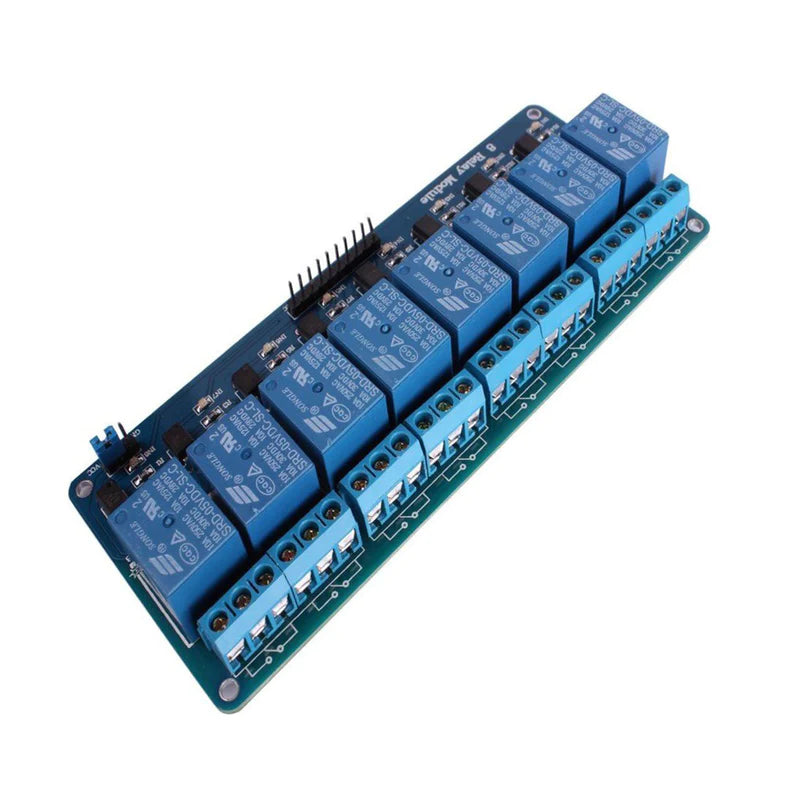

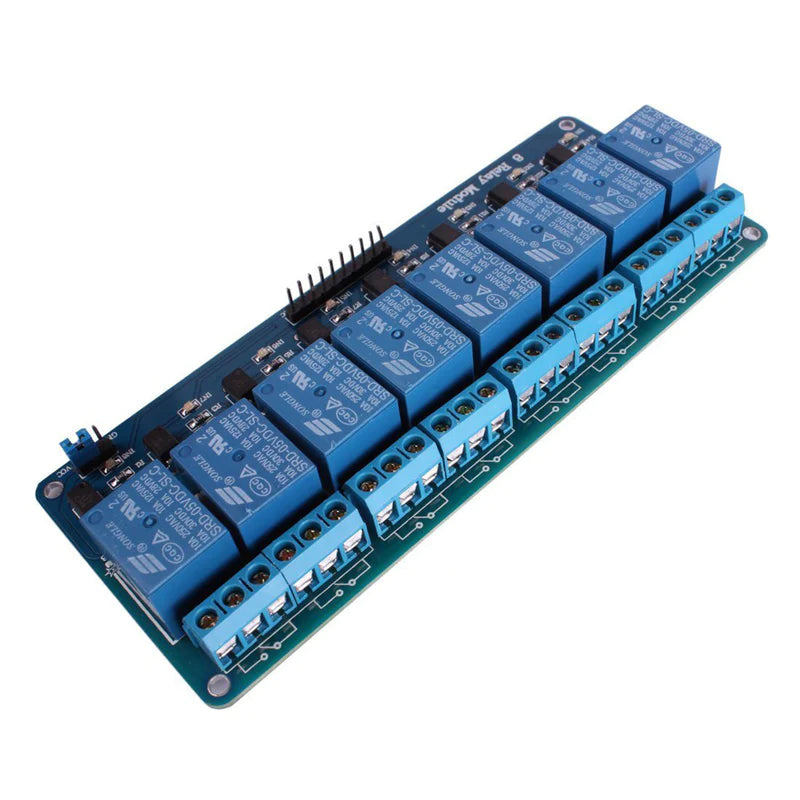

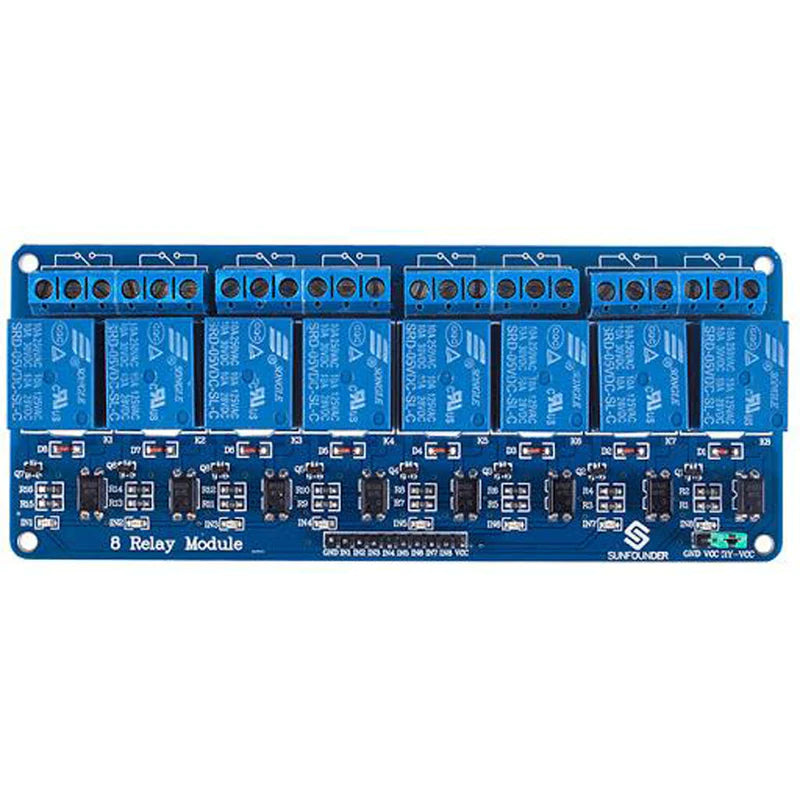

8 Channel 5V 10A Relay Module with optocoupler

8 Channel 5V 10A Relay Module with optocoupler

Description This is an 8 Channel 5V 10A Relay Module with optocoupler. The output rating for each relay is 230 volts 10 Ampere or 10 ampere at 30 volt DC....
17 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2338
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Modules Relay Module
View full product details

Description

This is an 8 Channel 5V 10A Relay Module with optocoupler. The output rating for each relay is 230 volts 10 Ampere or 10 ampere at 30 volt DC. Since each relay is provided with independent common terminal along with Normally Open (NO) and Normally Closed (NC) pins it is very easy to use. Each trigger pin is isolated from the relay using a opto-coupler thus making sure your circuit is saved.. 8 LED indicators are provided to display the individual Relay Status. The relays can be controlled directly by a wide range of microcontrollers such as Arduino , 8051, AVR, PIC, PLC,DSP, ARM, ARM, MSP430, TTL logic circuits, etc.

Specification

Channels  8
Operating Voltage 5V
Max Switching Current (AC) 10A @250V AC
Max Switching Current (DC) 10A @30V DC
Dimension (LxW) 140x58 mm
