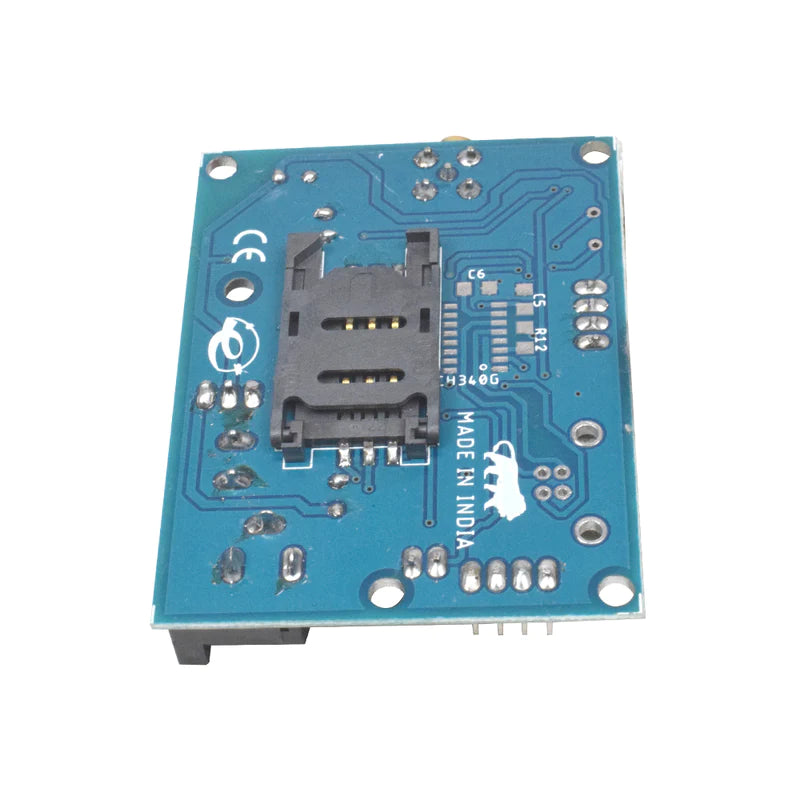

A7670C SIM 4G LTE GSM MODULE

A7670C SIM 4G LTE GSM MODULE

Description Its a 4G LTE development board its used to transfer the data from one point to another point its data transfer rate is 10 for downlink and 5 for...
24 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-3428
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

Its a 4G LTE development board its used to transfer the data from one point to another point its data transfer rate is 10 for downlink and 5 for uplink in MBPS its power consumption is 300mA in sleep mode less 10mA.It has a port for DC supply its operating voltage is 5V-12V. It has an on Chip Sim, It has total 12 pins for connectivity, GND,12V,GND,VRTC,S-,S+,M-,M+,Rx,Tx,GND,VCC. it has an antenna port to connect with he antenna. The serial interface allows for simple communication with a computer or laptop via a USB to Serial adapter or TTL converter. AT instructions are used to communicate with the A7670C.This SIM A7670C 4G LTE Development Board has onboard UART Logic Level Conversion, and VDD needs to be connected to host reference voltage. It has a UFL connector, which allows connection of any antenna with this board. Apart from this, the module is very compact in size.

Features

  • It has on Chip SIM
  • Its data transfer rate is 10MBPS for uplink and for downlink is 5MBPS
  • Its a small board
  • It supports only 4G
  • It has a micro SIM holder
  • Its suitable for LTE
  • IMEI No-865085055216019
  • Part No-S2-10A6T-230FD
  • Ultra low sleep mode current consumption: <10mA
SPECIFICATION
Model A7670C
Type LTE Module
Operating Voltage 5-12V
Sim holder type Micro SIM
Length 49.4mm
Width 65.0mm
Height 17.4mm
