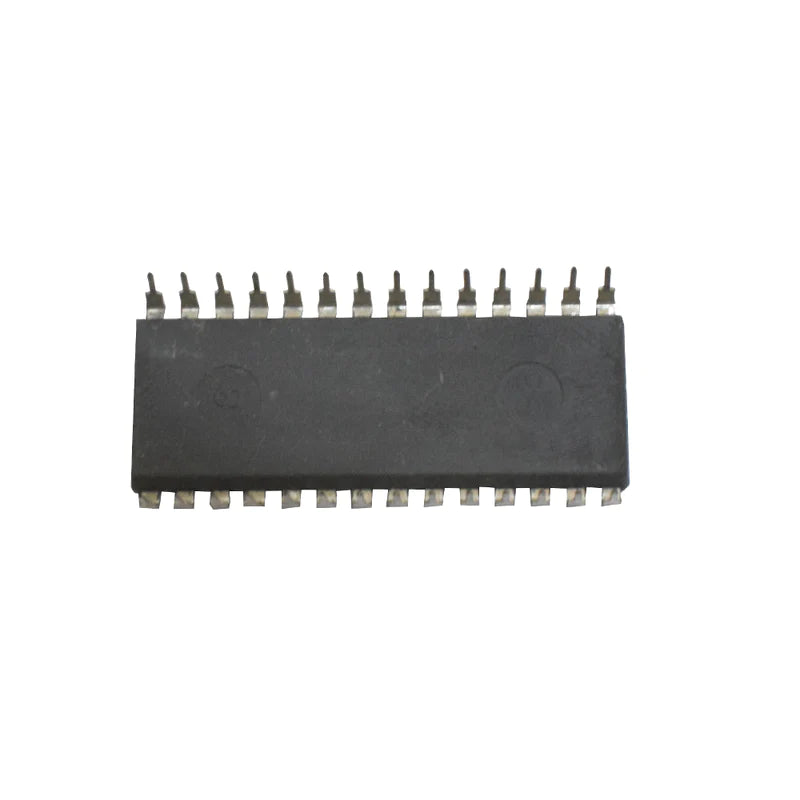

ADC0809CCN is an IC which is known as a converter IC, analog to digital converter IC. It has total 28 pins. The ADC0809 data acquisition component is an 8-bit analog-to-digital converter, an 8-channel multiplexer, and control logic that is compatible with microprocessors. It is a monolithic CMOS device. The conversion method used by the 8-bit A/D converter is sequential approximation. The converter has a successive approximation register, a 256R voltage divider with analogue switch tree, and a high impedance chopper stabilized comparator. Any of the 8 single-ended analogue signals can be directly accessed by the 8-channel multiplexer.
Features:
| Model | ADC0809CCN |
| Type | IC |
| No of Pins | 28 |
| Voltage | 5V |
| Analog Voltage | 4.5V |
| No of Channels | 8 |
| Mounting Type | Through Hole |
| Package | 28 DIP |
