Description :-

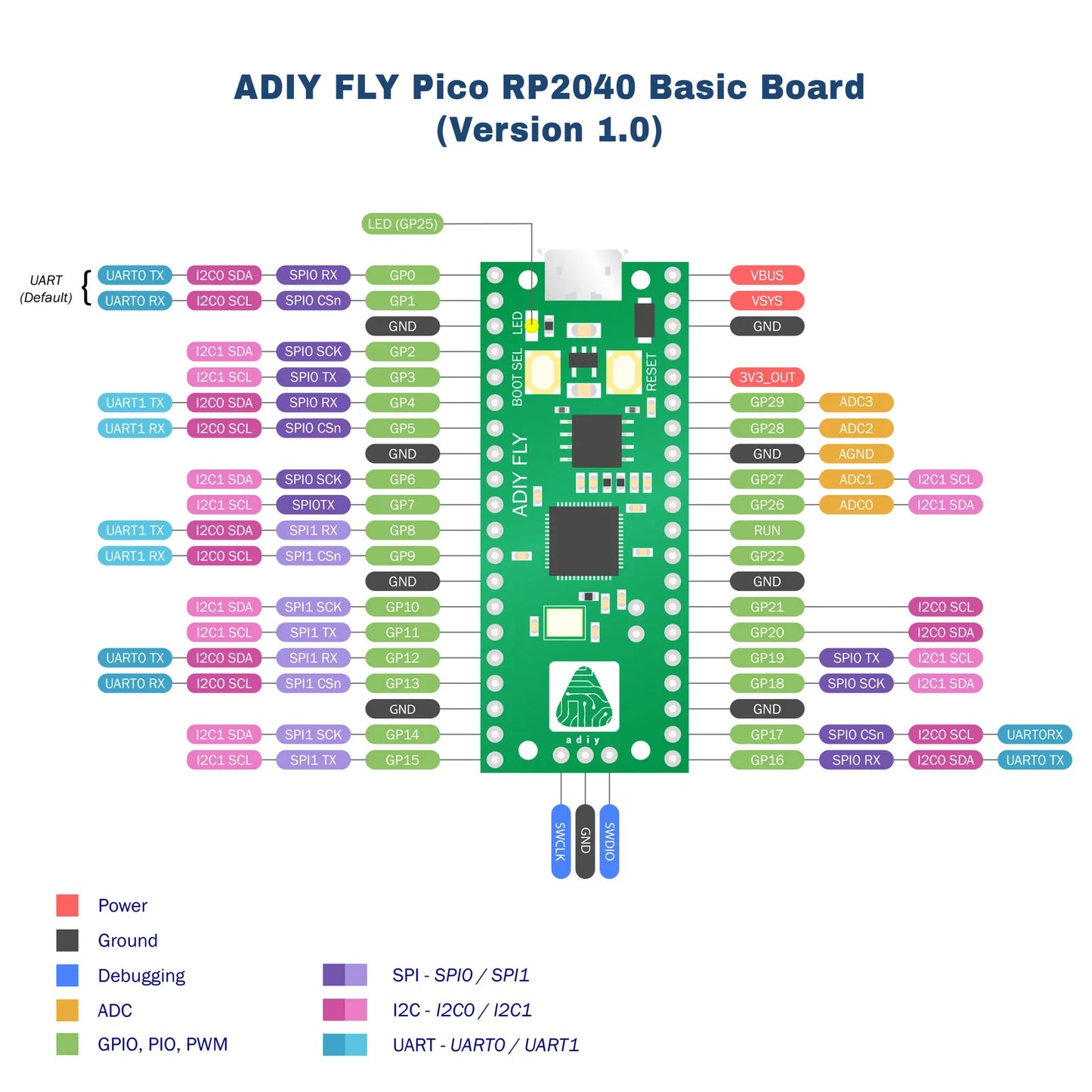

The main highlighted thing about ADIY FLY Pico is the Lowest cost and Smallest size development board from ADIY, its a replica of Raspberry Pi PICO.  On the technical side, it is equipped with an RP2040 Microcontroller chip developed by Raspberry Pi Foundation itself. RP2040 is their first dual-core ARM Cortex M0+ processor-based latest small-sized, budget-friendly microcontroller.

Feature :-

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz
• 264KB of SRAM, and 2MB of onboard Flash memory
• The castellated module allows soldering directly to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 26 multi-function GPIO pins
• 2 SPI, 2 I2C, 2 UART, 3 12-bit ADC, 16 controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 Programmable I/O (PIO) state machines for custom peripheral support.

Technical Specification :-
