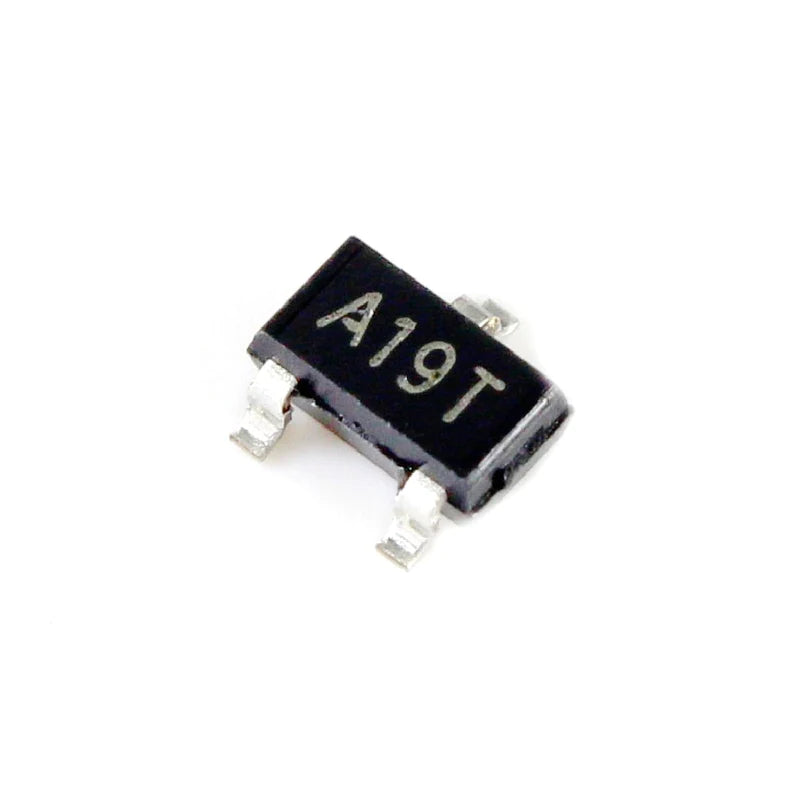

AO3401 30V 4A P-Channel MOSFET SOT-23 by Alpha & Omega

AO3401 30V 4A P-Channel MOSFET SOT-23 by Alpha & Omega

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The AO3401 P-Channel MOSFET by Alpha & Omega uses advanced trench technology to provide outstanding RDS(ON), low gate charge, and operation with gate voltages as low as 2.5V. This device...
28 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3701
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

The AO3401 P-Channel MOSFET by Alpha & Omega uses advanced trench technology to provide outstanding RDS(ON), low gate charge, and operation with gate voltages as low as 2.5V. This device is appropriate for use as a load switch or in PWM applications.

Features

  • VDS (V) = -30V
  • ID = -4.2 A (VGS = -10V)
  • RDS(ON) < 50mΩ (VGS = -10V)
  • RDS(ON) < 65mΩ (VGS = -4.5V)
  • RDS(ON) < 120mΩ (VGS = -2.5V)

Datasheet

SPECIFICATION
Model  AO3401
Brand Alpha and Omega
Drain-Source Voltage (VDS) -30V
Gate-Source Voltage (VGS) ±12V
Continuous Drain Current -4A to -3.2A
Pulsed Drain Current -27A
Operating Temperature -55°C~150°C
Package SOT23
