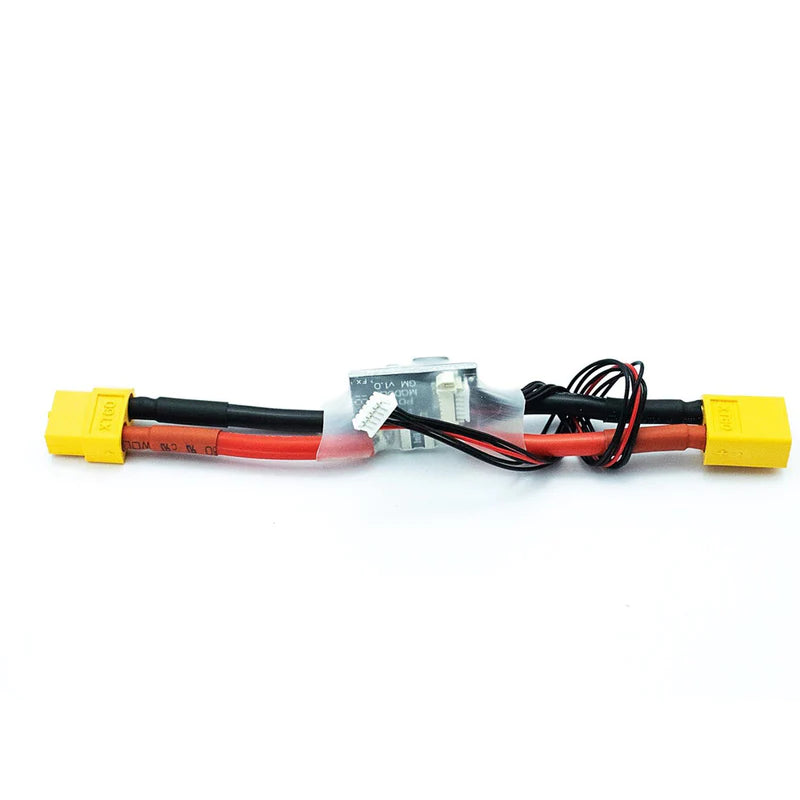

This APM Power Module V1.0 is a simple way of providing your APM/Arduflyer with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6P cable. The on-board switching regulator outputs 5.3V and a maximum of 3A from up to a 7S LiPo battery.Special for APM2.5.2 APM2.6
A six wire cable from the Power Module is plugged into your Pixhawk/APM power port. This enables current consumption and battery voltage measurement data to you Flight Controller via the DF13 plug. The six wire cable is approximately 7-inches long.
The battery cable is 12AWG extending approximately 6-inches between the male and female XT60 connectors.
Note: The Power Module is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio). It is not designed to power servos.
| Maximum Input Voltage | 28V |
| Maximum Current Sensing | 90A |
| Switching Regulator Max Voltage Output | 5.3V |
| Switching Regulator Max Current Output | 3A |
| Total length | 150 mm |
| Connector Type | XT60 |
