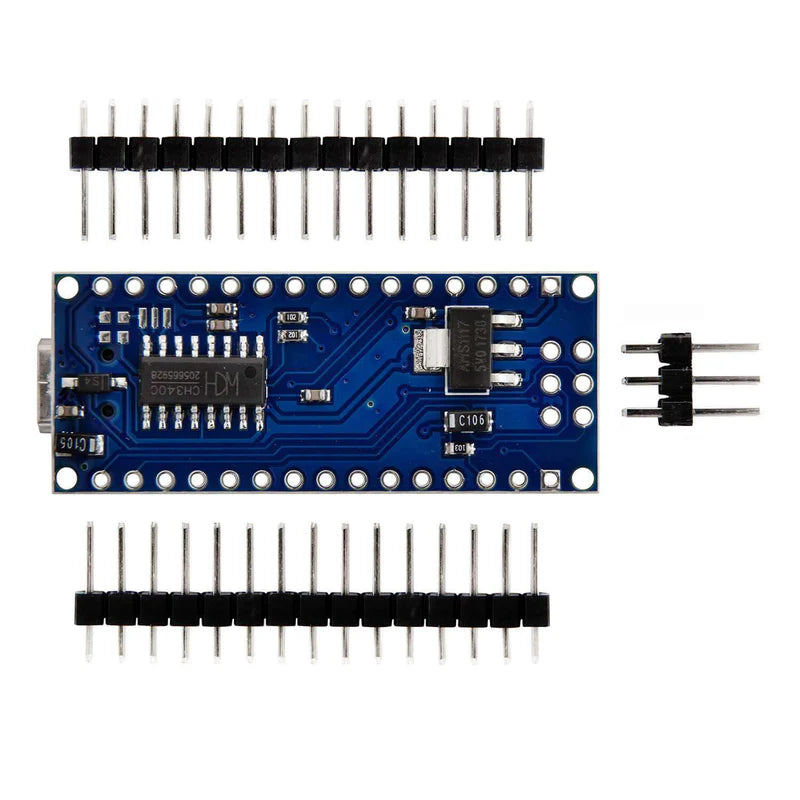

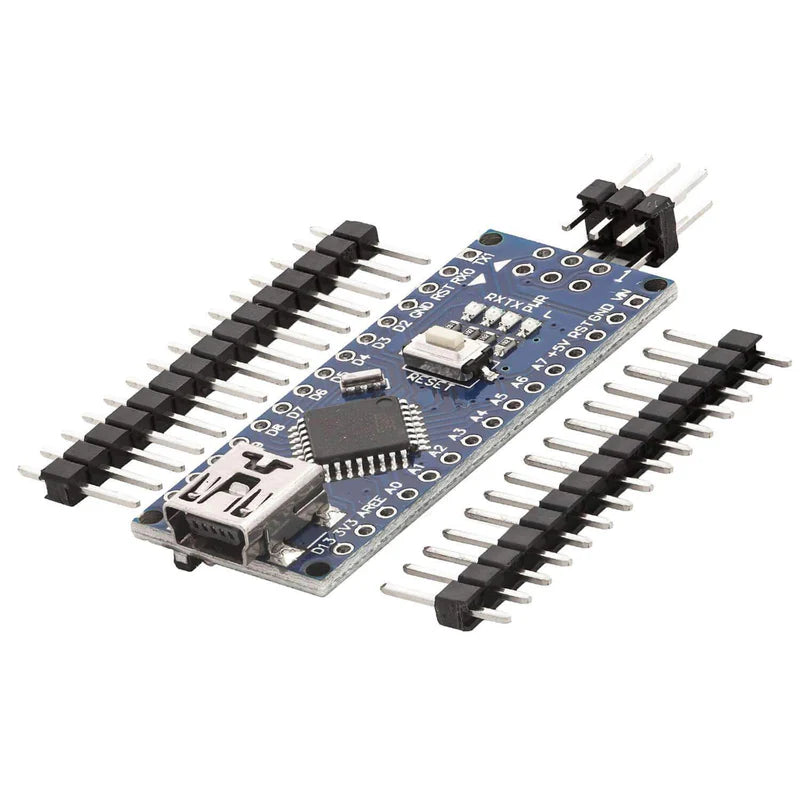

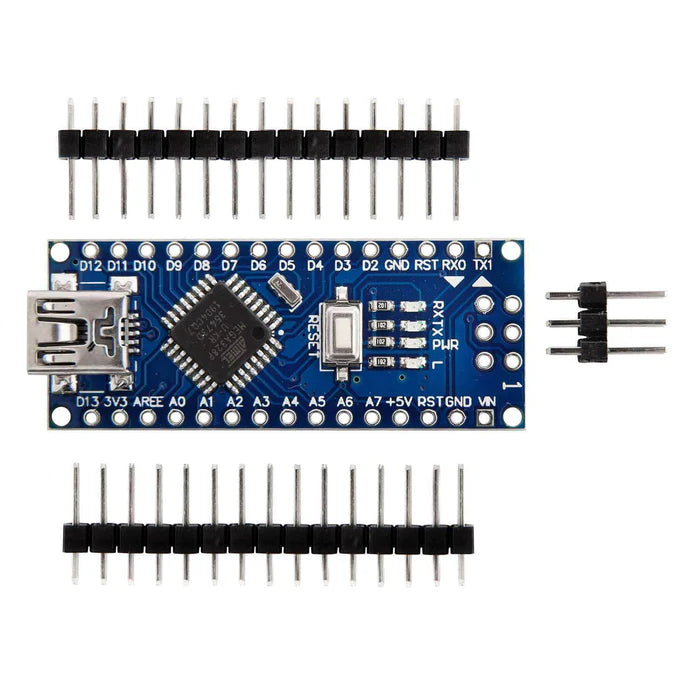

Arduino Nano R3 Atmega328P (Pin Unsoldered)

Arduino Nano R3 Atmega328P (Pin Unsoldered)

Regular price ₹ 303.00
Regular price ₹ 349.00 Sale price ₹ 303.00
Sold Out
Tax included. Shipping calculated at checkout.
Description :-  Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328. It has more or less the same functionality of the Arduino Due but in a...
22 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3376
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description :-

Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328. It has more or less the same functionality of the Arduino Due but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one. It is one of the smallest and yet most exciting breadboard-friendly boards available on the market today. It's become exceptionally popular with beginner programmers thanks to its excellent functionality and the sheer variation of potential applications. Based on the ATmega328P, this tool is fantastic for those who wish to improve their programming skills and create some interesting and unusual projects. While the item does not come with a DC power pack, it benefits from a mini-USB cable for power, and that means you can use it with any PC or laptop device.


Pin Configuration :-

  • D0 (Rx) & D1 (Tx) :- Used to receive and transmit TTL serial data
  • D2 & D3 :- These pins can be configured to trigger an interrupt on a low value, a rising or falling edge, or a change in value
  • D3, D5, D6, D9, D10, D11 :- Provide 8-bit PWM output with the analogWrite() function
  • D11 (MOSI), D12 (MISO) & D13 (SCK) :- These pins support SPI communication
  • A4 (SDA) & A5 (SCL) :- Support I2C (TWI) communication using the Wire library
  • AREF :- Reference voltage for the analog inputs
  • Reset :- Bring this line LOW to reset the microcontroller

Features :-
  • Automatic reset during program download
  • Power OK blue LED
  • Green (TX), red (RX), and orange (L) LED
  • Auto-sensing/switching power input
  • Small mini-B USB for programming and serial monitor
  • ICSP header for direct program download
  • Standard 0.1” spacing DIP (breadboard friendly)
  • Manual reset switch
SPECIFICATIONS :-
  • Microcontroller :- Atmel ATmega328P
  • Operating Voltage (logic level) :- 5V
  • Input Voltage (recommended) :- 7-12V
  • Input Voltage (limits) :- 6-20V
  • Digital I/O Pins :- 14(of which 6 provide PWM output)
  • Analog Input Pins :- 8
  • DC Current per I/O Pin :- 40mA
  • Flash Memory :- 32KB
  • SRAM :- 2KB
  • EEPROM :- 1KB
  • Clock Speed :- 16MHz

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
