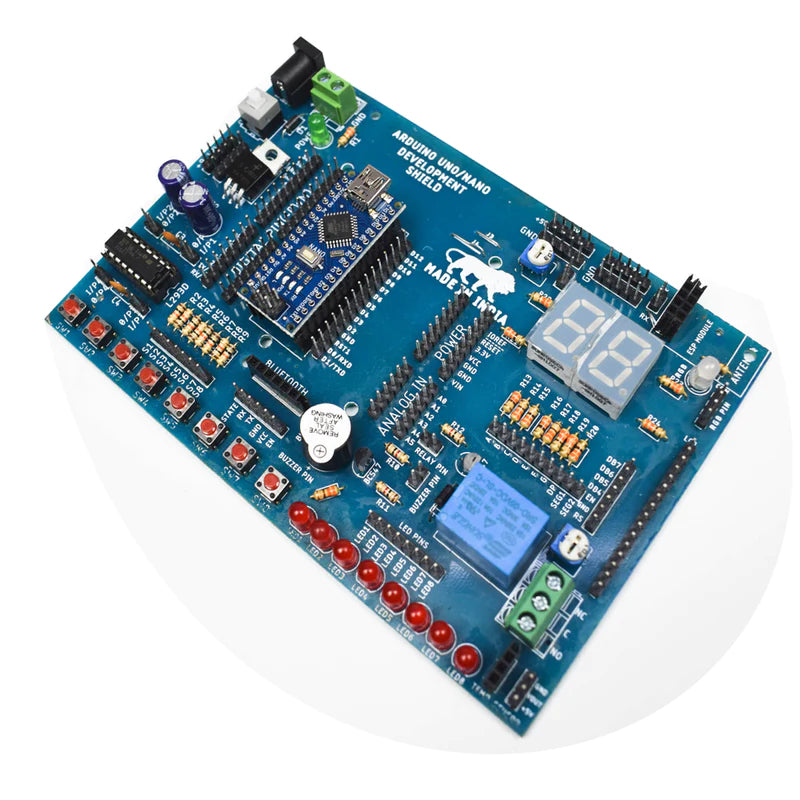

Arduino UNO/Nano Development Board Shield with Nano Board

Arduino UNO/Nano Development Board Shield with Nano Board

Description This is an Arduino UNO/Nano Development Shield Board with Nano Board. All Pins are Breakout Pins are available at Female bugs Connector, which can be used as the main board...
22 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-3427
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

This is an Arduino UNO/Nano Development Shield Board with Nano Board. All Pins are Breakout Pins are available at Female bugs Connector, which can be used as the main board for developing applications. The most important feature of this board is that we can do as many practicals on a single board without a breadboard like IoT, sensors, gsm, GPS etc. This Arduino UNO/Nano Shield board's construction includes a relay, 2-seven-segment displays, a buzzer, an L293D motor driver, a Bluetooth & ESP insert port, an 8-input switch with output indication etc.

Features

  • Compatible with Arduino NANO and UNO.
  • All digital and Analog pins break out.
  • Compact size.
  • It comes with Nano Board

    Project ideas

    • Dc Motor Operates with L293D IC
    • Output Relay Control
    • Seven-Segment Display
    • BCD Converter
    • Timer Control
    • Timer Relay Control
    • On/Off Switch with LED Indication
    • LED Dimmer
    • Counter
    • Timer Counter
    • LED Fadness
    • IR Transmitter & Receiver
    • Bluetooth
    • ESP Wireless
    • Sensors

    Package Included:

    1 x NANO/UNO Development Board Shield

    1 x Nano Board

    Specifications

     Product Arduino Nano/UNO Development Board Shield
     Compatible Board Arduino Nano & UNO
     Type Development Board
     CPU Socket DIP
     Output Voltage +5V, +3.3V, +9V, +12V
     Input Voltage
    +9V/+12V
     Programmable Button No
     Dimension (mm) 152 x 106 x 18(mm)
     Make Made in India
