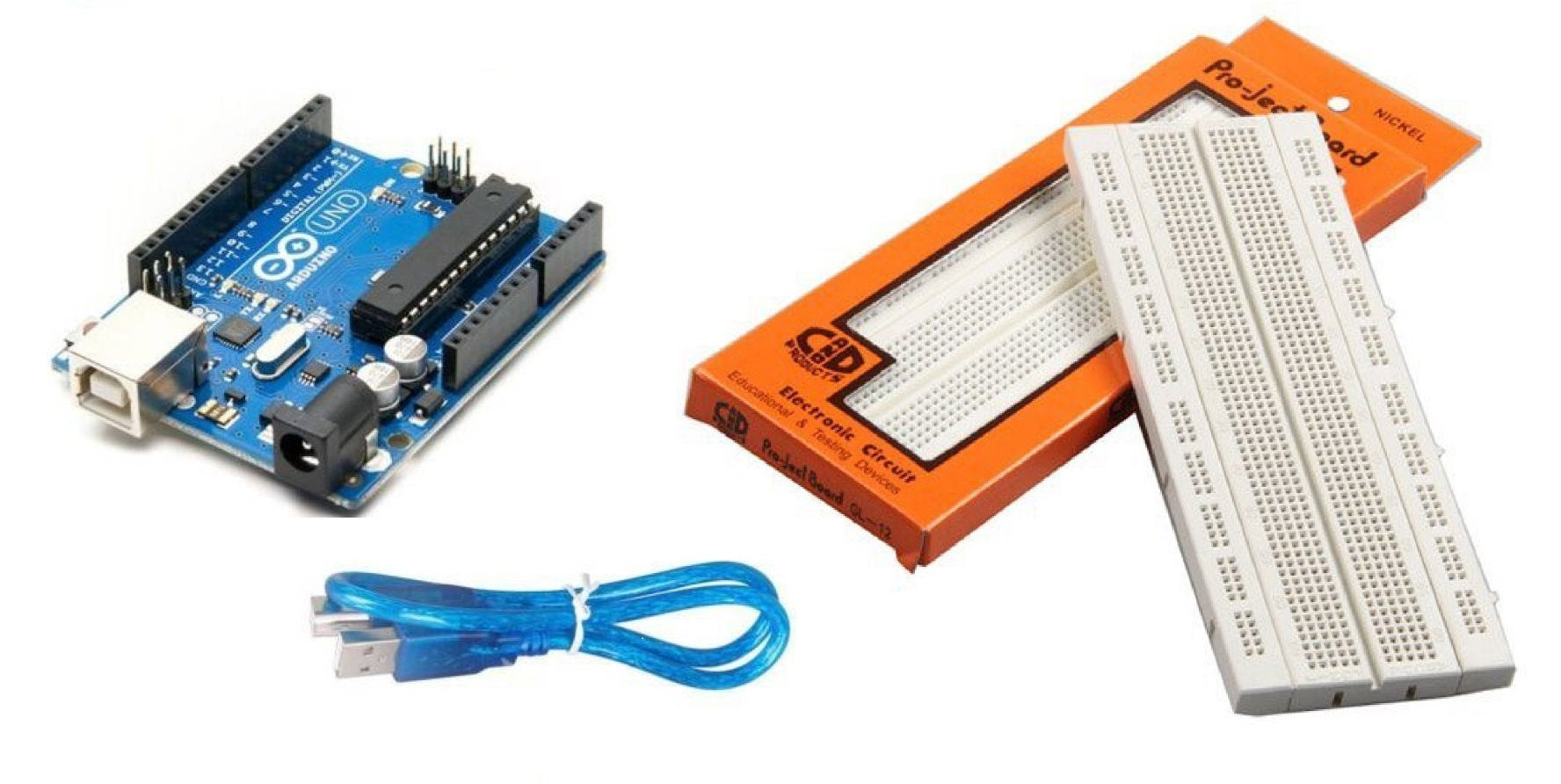

Arduino Uno R3 Development Board With 804 Point Breadboard & USB Cable

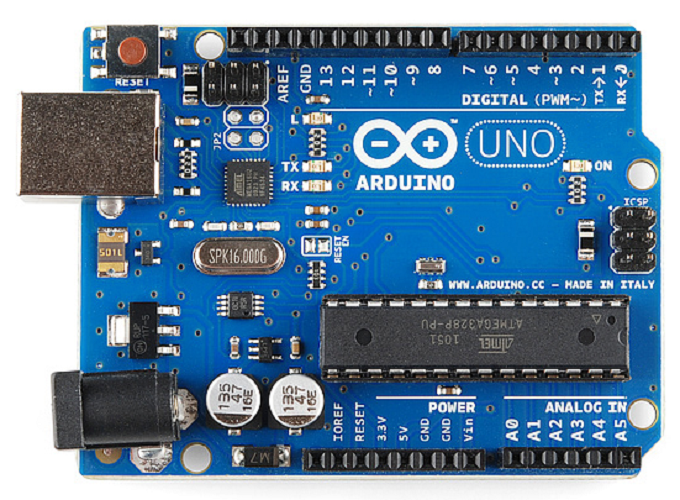

EnGeniusLab providing Arduino Uno R3 is a microcontroller board based on a removable, dual-inline-package (DIP) ATmega328 AVR microcontroller. It has 20 digital input/output pins (of which 6 can be used as PWM outputs and 6 can be used as analog inputs). a 16 MHz crystal, a USB connection, a power jack, an in-circuit system programming (ICSP) header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer (or appropriate wall power adapter) with a USB cable or power it with an AC-to-DC adapter or battery to get started. Programs can be loaded on to it from the easy-to-use Arduino computer program
The Arduino has an extensive support community, which makes it a very easy way to get started working with embedded electronics. The R3 is the third, and latest, revision of the Arduino Uno. The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features an ATmega16U2 programmed as a USB-to-serial converter. This auxiliary microcontroller has its own USB bootloader, which allows advanced users to reprogram it.
Now it is right time to start your exploration by using EnGeniusLab Arduino Uno R3 Board with Explore of ATmega328P with lots of amazing on board features. We have built this development board to make powerful AVR Micrcontrollers series more accessible to you. The board uses Atmega328P an 8-bit, 16 MHz Microcontroller with numerous features. The board also has a USB bootloader which making programming the microcontroller extremely use. You simply need to drag and drop the HEX file by using bootloader software.

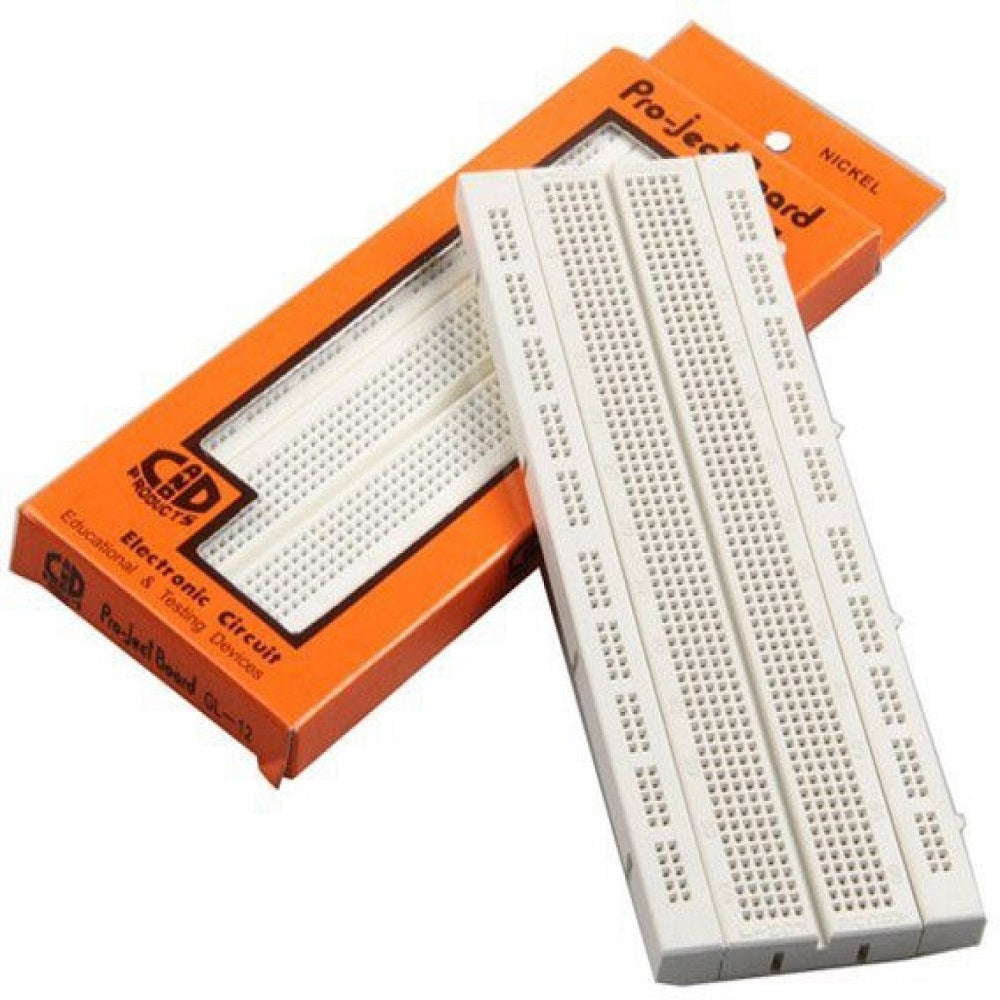

This Combo specially made because all the project & experiments on Arduino UNO performed using breadboard & it connection. So Grab The Best Deal.
On Board Microcontroller ATmega328P With Open Source BootLoader Software*It Contain Digital I/O Pins 14 (of which 6 provide PWM output) & Analog Input 6 Pins*Flash Memory 32 KB (ATmega328P) of which 0.5 KB used by bootloader with USB Supportable,, SRAM 2 KB (ATmega328) EEPROM 1 KB (ATmega328).*Operating Voltage : 5V & Clock Speed 16 MHz
