Description :-

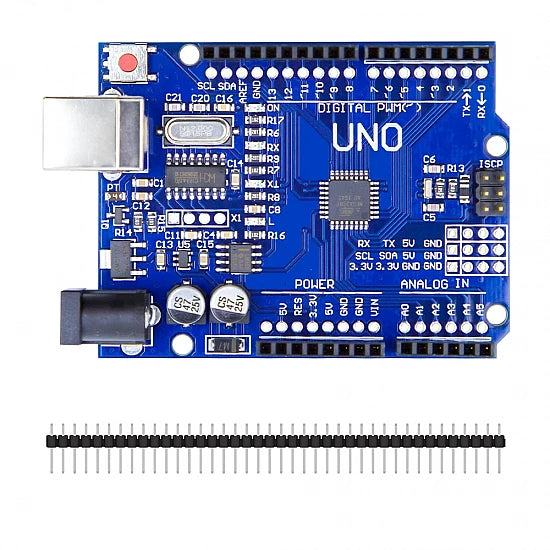

The Arduino Uno is a micro controller board which is based on the ATmega328. Arduino Uno have 14 digital input or output pins(where 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header and a reset button. It have everything needed to support the microcontroller, you need to simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started

Features :-

• Easy application programming using open source IDE
• Easy to learn Microcontroller using Arduino boards.
• Easy application programming using open source IDE
• Ready Library for most of sensors and application modules.
• More informaiton on www.arduino.cc

Specification :-

• Microcontroller : ATmega328
• Operating Voltage : 5V
• Input Voltage (recommended) : 7-12V
• Input Voltage (limits) : 6-20V
• Digital I/O Pins : 14 (of which 6 provide PWM output)
• Analog Input Pins : 6
• DC Current per I/O Pin : 40 mA
• DC Current for 3.3V Pin : 50 mA
• Flash Memory 32 KB (ATmega328) of which 0.5 KB used by
• bootloader
• SRAM 2 KB (ATmega328)

• EEPROM 1 KB (ATmega328)

• Clock Speed 16 MHz

*Note: Product Image are shown for illustrative purposes only and may different from the actual product
