Description :-

ATMEGA32A is featuring 32KB self-programming flash program memory in it’s 40 pin, 8-bit AVR RISC-based microcontroller from Atmel. It is a low power yet high performance microcontroller that has 2KB SRAM, 1KB EEPROM, 8 channel 10-bit Analog to Digital converter. For the debugging and programming support, JTAG interface and an on-chip-debugger is also available in this microcontroller unit. The device achieves 16 MIPS throughput at 16 MHz at 2.7-5.5V operation.

2.7V-5.5V opens up a wide range of input voltage range that is suitable for both 3.3V and 5.5V operations. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, allowing you to optimize power consumption versus processing speed.

Additional peripheral supports are - 32 x 8 I/O registers, UART, I2C and SPI interface, PWM, Timers etc.

Atmega32a pinout :-



Features of ATmega32A Microcontroller:-

• Operating Voltage: 4.5V to 5V
• Advanced RISC Architecture.
• 32 x 8 General Purpose Working Registers.
• Fully Static Operation.
• Up to 16 MIPS Throughput at 16 MHz.
• On-chip 2-cycle Multiplier.
• High Endurance Non-volatile Memory segments.
• 32 Kbytes of In-System Self-programmable Flash program memory.
• 1024 Bytes EEPROM.
• 2 Kbyte Internal SRAM.
• Write/Erase Cycles: 10,000 Flash/100,000 EEPROM.
• Data retention: 20 years at 85°C/100 years at 25°C(1).
• Optional Boot Code Section with Independent Lock Bits.
• In-System Programming by On-chip Boot Program.
• True Read-While-Write Operation.
• Programming Lock for Software Security.
• Extensive On-chip Debug Support.
• 8 Single-ended Channels.
• Byte-oriented Two-wire Serial Interface.
• Programmable Serial USART.
• Master/Slave SPI Serial Interface.
• Programmable Watchdog Timer with Separate On-chip Oscillator.

Applications of ATmega32A Microcontroller:-

• Multiple DIY projects..
• Projects requiring more than logical control for devices.
• Microcontroller applications for multiple device interface/Control.

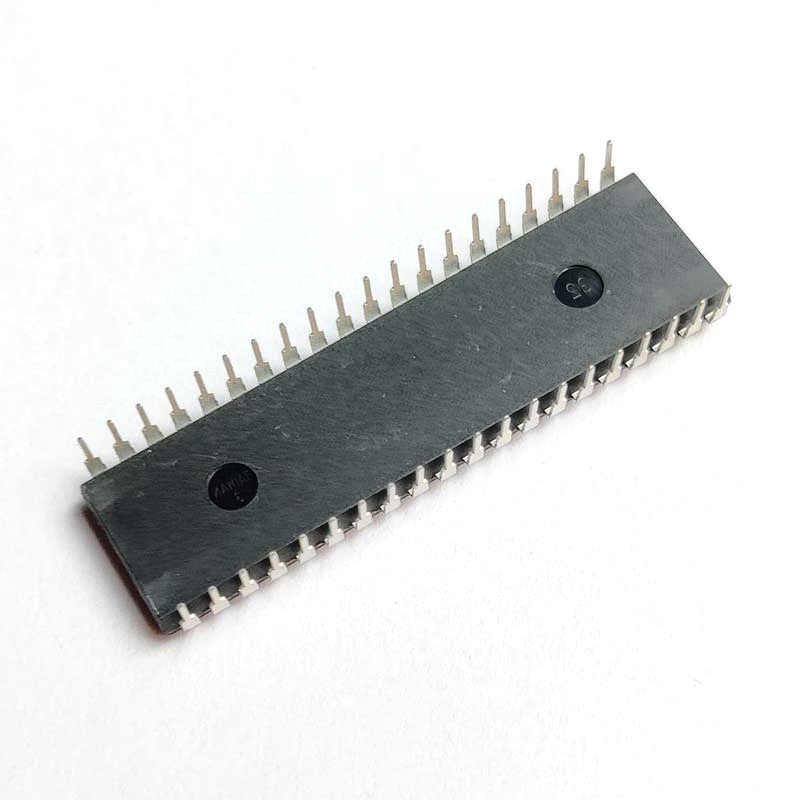

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
