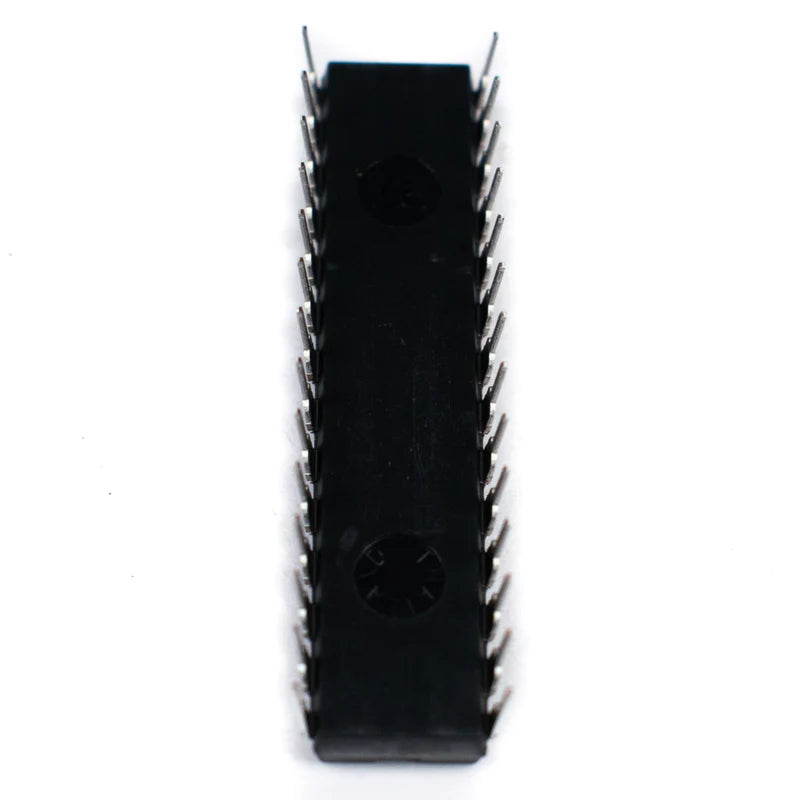

The Atmel®AVR® ATmega8 is a low-power CMOS 8-bit microcontroller based on the AVR RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega8 achieves throughputs approaching 1MIPS per MHz, allowing the system designer to optimize power consumption versus processing speed. The Atmega8A is an 8-bit AVR RISC-based microcontroller from Atmel that includes 8KB ISP flash memory, 1KB SRAM, 512B EEPROM, a 7-channel/10-bit A/D converter (TQFP and QFN/MLF), and debug WIRE for on-chip debugging.

Datasheet

Features

• Advanced RISC Architecture
• 130 Powerful Instructions, 32 × 8 General Purpose Working Registers,
• Fully Static Operation,
• Up to 16 MIPS Throughput at 16MHz, On-chip 2-cycle Multiplier
• 23 Programmable I/O Lines
• Operating Voltages: 4.5V - 5.5V
• Power Consumption at 4Mhz, 3V, 25°C : Active: 3.6mA ;Idle Mode: 1.0mA ;Power-down Mode: 0.5µA
• Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby
• Internal Calibrated RC Oscillator
• External and Internal Interrupt Sources
• Programmable Serial USART
• Real-Time Counter with Separate Oscillator
• Three PWM Channels
• 8Kbytes of In-System Self-programmable Flash program memory, 512Bytes EEPROM, 1Kbyte Internal SRAM
• Data retention: 20 years at 85°C/100 years at 25°C
