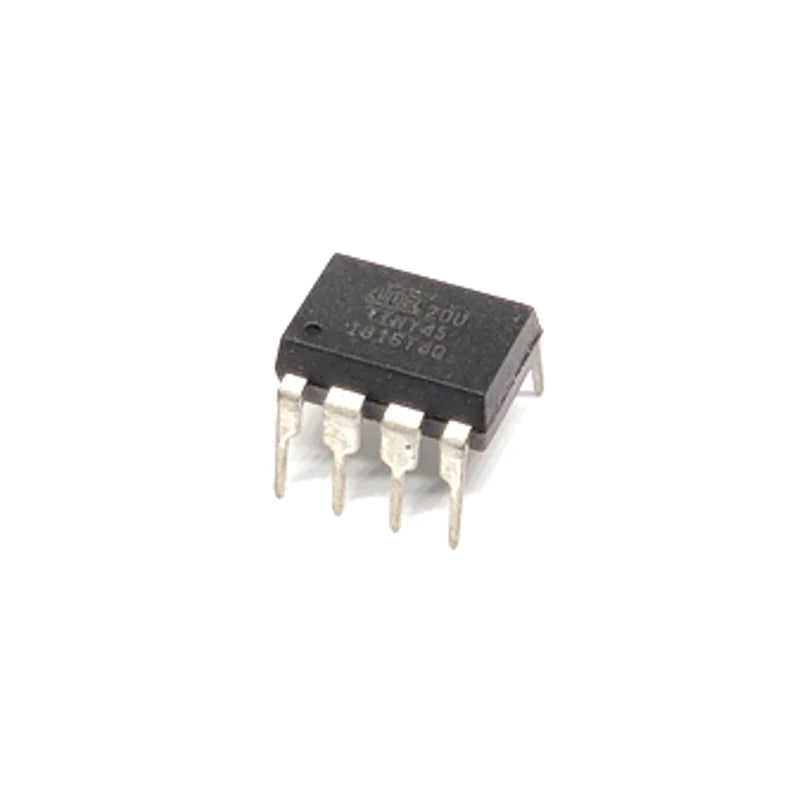

Attiny45 8 Pin AVR DIP Microcontroller IC

Attiny45 8 Pin AVR DIP Microcontroller IC

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The high-performance, low-power Microchip 8-bit AVR RISC-based microcontroller combines 4 KB ISP flash memory, 256-Byte EEPROM, 256B SRAM, 6 general-purpose I/O lines, 32 general purpose working registers, one 8-bit...
24 people are viewing this right now

AvailabilityIn stock

SKU: ATC-4117
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Controller IC
View full product details

Description

The high-performance, low-power Microchip 8-bit AVR RISC-based microcontroller combines 4 KB ISP flash memory, 256-Byte EEPROM, 256B SRAM, 6 general-purpose I/O lines, 32 general purpose working registers, one 8-bit timer/counter with compare modes, one 8-bit high-speed timer/counter, USI, internal and external Interrupts, 4-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator, three software selectable power saving modes, and debug WIRE for on-chip debugging. The device achieves a throughput of 20 MIPS at 20 MHz and operates between 2.7-5.5 volts. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed. This is a great little microcontroller with an internal oscillator that runs at 8 MHz, SPI, I2C, or Serial Port interface, 4 K of flash program memory, 256 bytes of RAM, and 256 bytes of EEPROM.

SPECIFICATIONS
Manufacturer Microchip Technology
Series AVR® ATtiny
Core Size 8 bit
Speed 20 MHz
Number of I/O 6
Program Memory Size 4 KB
EEPROM Size 256 x 8
Package 8 Pin DIP
RAM Size 256 x 8
