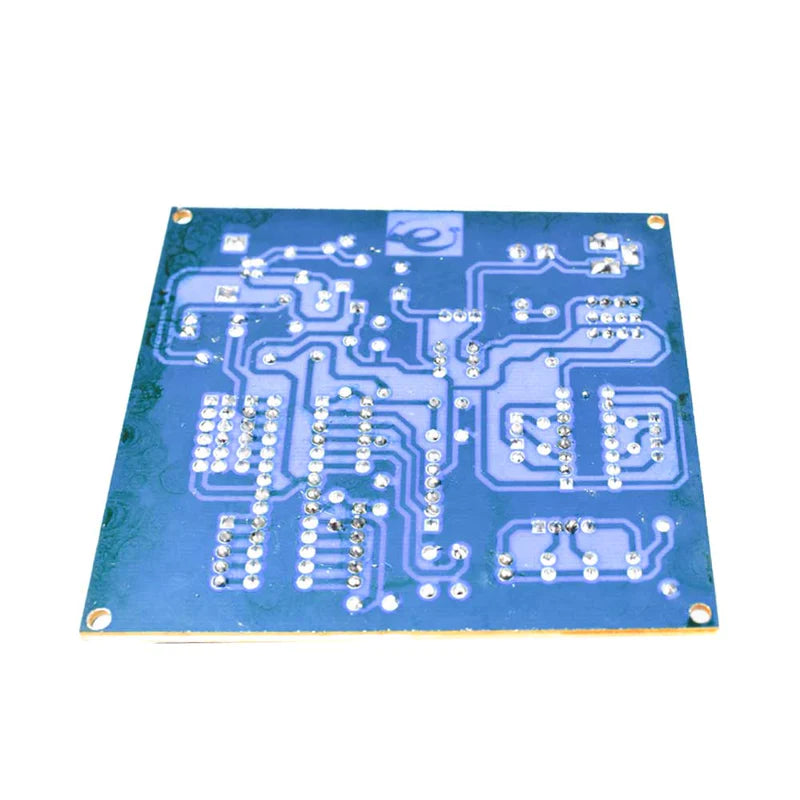

AVR ATMega8 Bootloader Mini Development Board

AVR ATMega8 Bootloader Mini Development Board

Description This is an AVR ATMega8 Bootloader Mini Development Board. It is specially designed Bootloader Mode by using BOOT Button on board, with no need for a separate programmer. The board has Atmega8...
18 people are viewing this right now

Availability: In stock

Ask For Price
SKU: ATC-3430
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Miscellaneous Development Board
View full product details

Description

This is an AVR ATMega8 Bootloader Mini Development Board. It is specially designed Bootloader Mode by using BOOT Button on board, with no need for a separate programmer. The board has Atmega8 MCU with a USB bootloader feature, hence no external programmer is required which means this can easily program by USB Cable only. This has on board L293D circuit which provides the best solutions for robotics applications. 4 LEDs were also provided to check the status & configure the outputs. We designed this board for small robotics & embedded applications tools & projects.

Features

  • Directly to USB Programmable Board with Boot Feature & also Built-in 4 LED Interface to test I/O, Bluetooth Interface (HC-05), with inbuilt Circuit of the motor driving L293D on board.
  • All input & output devices are supported by boards like IR, Sound, Ultrasonic, LDR, Voice, Temperature, Humidity, Pulse & Heartbeat Sensors.
SPECIFICATIONS
Product AVR ATMega8 Bootloader Mini Development Board
MCU Socket DIP
MCU
 AVR ATMega8
Dimension(mm) 87*87 (mm)
Programme Interface USB B-Type
No of Port 03
Make Make in India
