Description

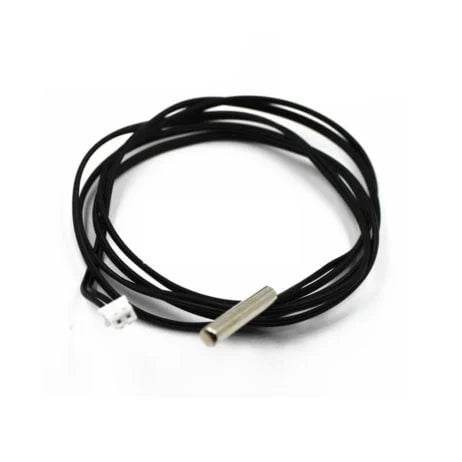

The B3950 10K NTC Waterproof High Precision Thermistor Temperature Sensor, measuring 5 x 25mm, is versatile and suitable for various temperature measurement applications.

Featuring a stainless-steel tip of 5 x 25mm size and an XH2.54 connector with a 0.5-meter cable, this sensor offers convenience and ease of use. Its Negative Thermal Coefficient (NTC) means that its resistance decreases as temperature rises. However, in practical applications, the relationship between resistance and temperature may not be linear. Therefore, relying on an accurate table of measurements from the accompanying datasheet often proves more reliable than using a linear formula.

Specification

• Probe sheath material: Stainless Steel
• Style: B3950 10K
• Resistance value: 10K ± 1%
• Measurement range: -20 to 105 °C
• Cable Length: 0.5 Meter
• Size of probe: 5 x 25 mm
• Output wires: 2
• Typical Dissipation Constant: 5mW/ °C
• Probe insulation: >100MOhm.
• Weight: 0.05665 Kg

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
