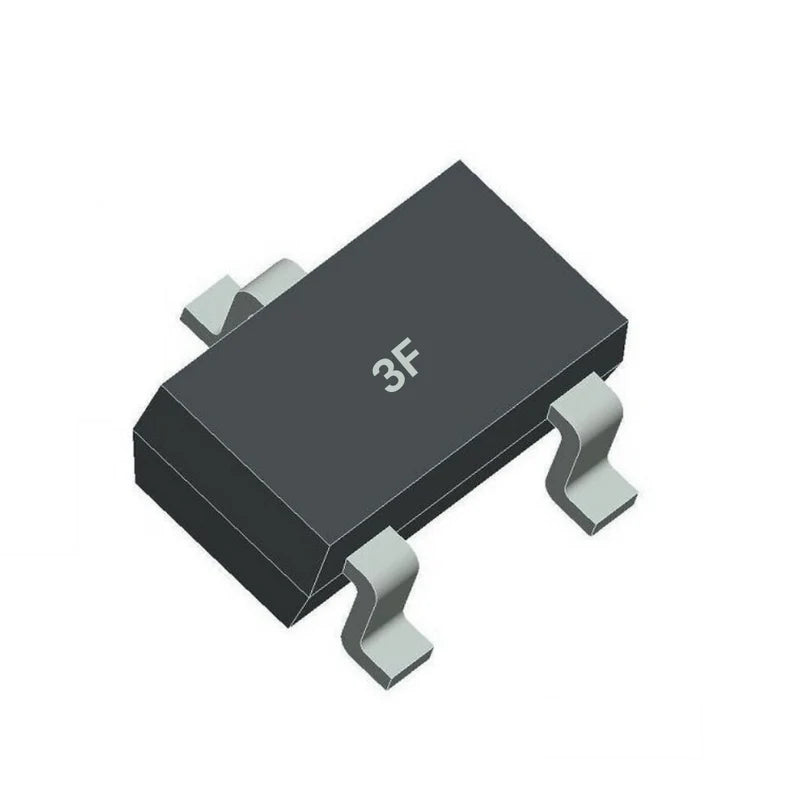

BC857 PNP General Purpose Transistor (SMD SOT-23 Package)

BC857 PNP General Purpose Transistor (SMD SOT-23 Package)

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The BC857 transistor is a PNP general-purpose transistor. This transistor's primary uses are general-purpose switching and amplification. The BC857 PNP transistor is packaged in a tiny SOT-23 package. It...
25 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3542
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

The BC857 transistor is a PNP general-purpose transistor. This transistor's primary uses are general-purpose switching and amplification. The BC857 PNP transistor is packaged in a tiny SOT-23 package. It operates on low current and voltage. It's an SMD version of the BC557 TH Transistor.

Features:

  • Its general Purpose transistor
  • Its mostly used in Switching Applications
  • Its Mounting Style is SMD

 Specifications

Part Number

BC857

Mounting Style

SMD

Package

SOT-23

Transistor Polarity

PNP

Collector-Emitter Voltage VCEO Max

-45 V

Collector-Emitter Voltage VCES Max

-50V

Collector-Base Voltage VCBO Max

-50V

Emitter-Base Voltage VEBO Max

-5V

Power Dissipation at Tamb=25C  Ptot

330mW

Operating Temperature

-55 to +150C

Collector Cut-Off  Current

Max -15nA

Transition Frequency

150fT
