Availability: In stock
Ask For Price
Free shipping and returns available on all orders!
We ship all orders within 5-10 business days
We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

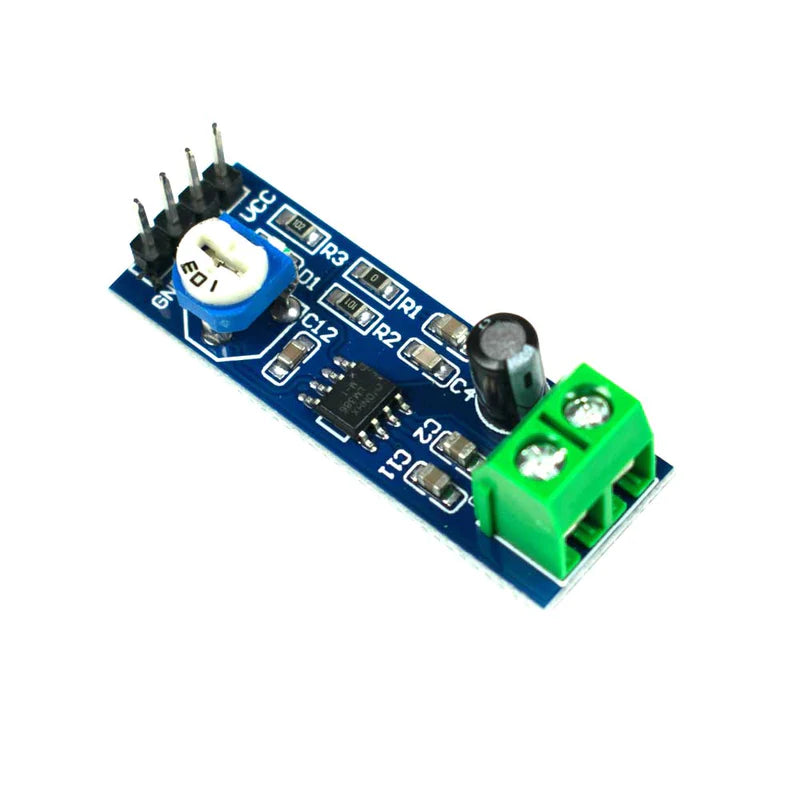

The LM386 Audio Amplifier Module has a 10K adjustable resistance. It is intended for use in low-voltage consumer applications. The gain is by default set to 20 to keep the external part count low, but a resistor and capacitor connected to pins 1 and 8 will increase the gain to any value between 20 and 200. The inputs are grounded, and the output is automatically biassed to half the supply voltage. When powered by a 6-V supply, the quiescent power drain is only 24mW, making the LM386 ideal for battery operation.
Features
| Operating Voltage | 5V-12V DC |
| On-Board IC | LM386 |
| Max. Signal Gain | 200 |
| Size | 41x14.5x13.8mm |
