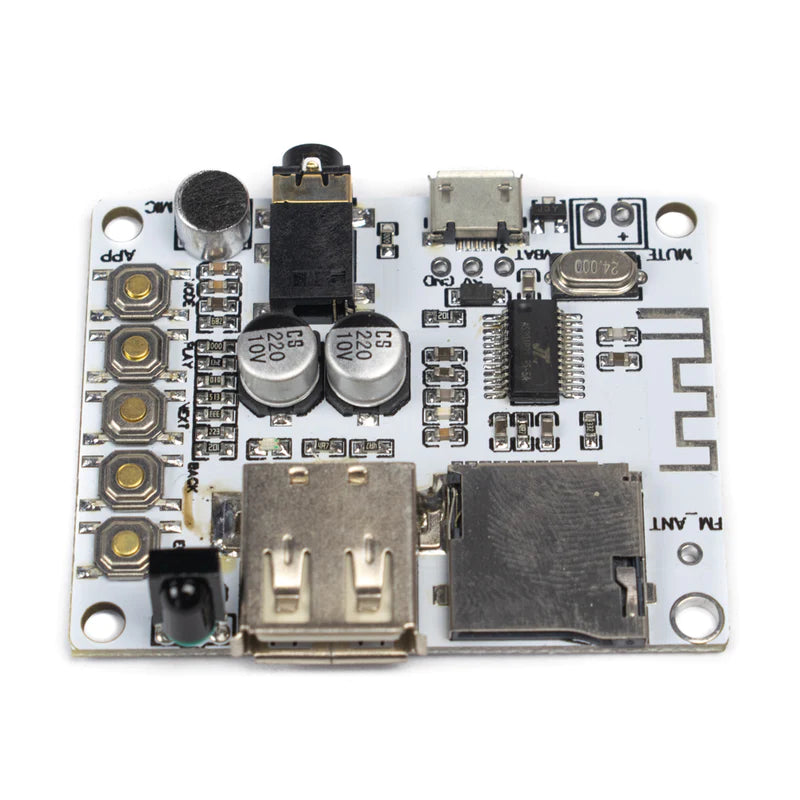

Bluetooth Audio Receiver Decoder Board with USB TF Card Slot & Microphone Input

Bluetooth Audio Receiver Decoder Board with USB TF Card Slot & Microphone Input

Description Bluetooth Audio Receiver Decoder Board with USB TF Card Slot & Microphone Input is Small size, easy to use, you can directly use the mobile phone charger to power...
21 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2704
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Audio Module Audio Module
View full product details

Description

Bluetooth Audio Receiver Decoder Board with USB TF Card Slot & Microphone Input is Small size, easy to use, you can directly use the mobile phone charger to power supply through the Android data cable. Bluetooth audio receiver board support the latest V4.2 Bluetooth device. The transmission distance is up to 15 meters in an open and unobstructed environment.

Support Bluetooth call function, mobile phone call function. U disk / TF memory card playback function, support WAV, WMA, FLAC, APE. MP3 five formats of audio, and actual lossless audio player board. Support breakpoint resume function, where to disconnect, continue to play in the disconnected position after power-on next time.

Support fast forward and rewind function. In the U disk / TF card playback mode, control the song's fast rewind / fast forward function through the previous/next button of the remote control. Support volume hold function, adjust the volume, the volume before power off after the next power-on, will not restore the default volume. It is convenient for users to adjust the volume without powering up each time.

You can directly push the headphones to play or pull the audio cable out to the power amplifier board to play through the speaker. Increase the outer casing and antenna welding-free design, with strong magnetic adsorption at the bottom of the casing for easy DIY user assembly.  Can connect with your mobile phone for calling.

SPECIFICATIONS
Operating Voltage 5V DC
Power Interface Micro-USB
Wireless Communication Bluetooth 4.2V, IR Receiver
Audio Output 3.5mm Audio Jack
Voice Input Microphone
Control Buttons 5
PCB Size 50x40mm
