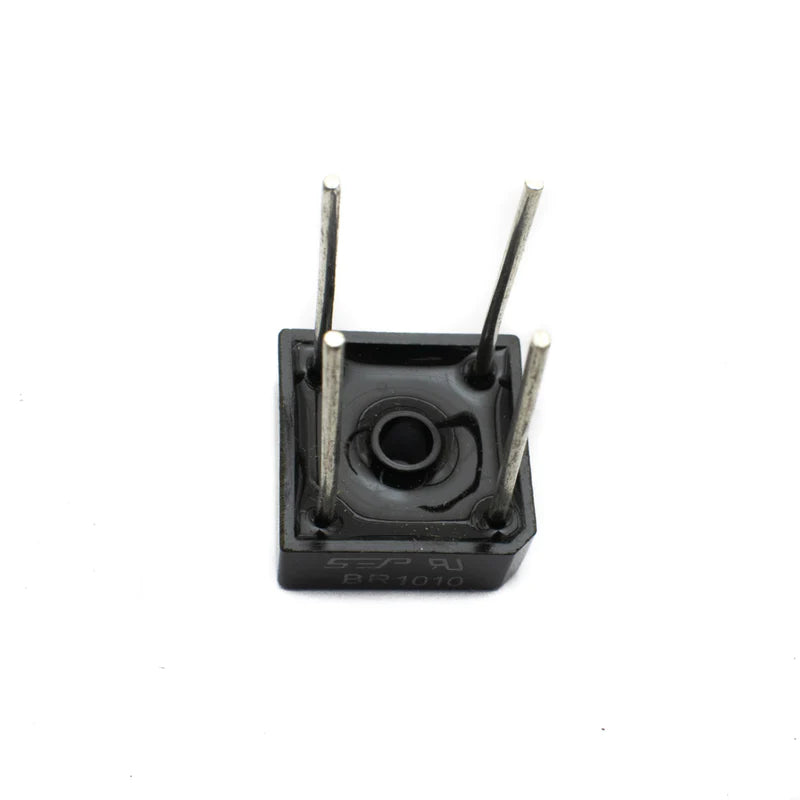

BR1010 10A 1000V Single-Phase Silicon Bridge Rectifier

BR1010 10A 1000V Single-Phase Silicon Bridge Rectifier

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The BR1010 is a bridge rectifier diode commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence can be used for a...
18 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3749
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Bridge Rectifier
View full product details

Description

The BR1010 is a bridge rectifier diode commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum DC current that this IC can handle is 10A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.1V. It has high efficiency and a high surge current capability of 200A. If you are looking for a compact IC for rectification application this can be a good choice.

Pinout

Pin Number

Pin Name

Pin Description

1

Positive

Positive of Rectified Output

2

AC Input

AC Input

3

Negative

Negative of Rectified Output

4

AC Input

Ac Input

Features

  • 200 forward surge current capability
  • Low forward voltage drop
SPECIFICATIONS
Input Voltage 50-1000V
Maximum RMS Bridge Input Voltage 700V
Maximum DC Blocking Voltage 1000V
Maximum Average Forward Output Current  10A at 50C, 6A at 100C
Maximum Forward Voltage 1.1V
Operating Temperature Range -55°C to +150°C
Dimensions  19mm x 19mm x 7.2mm
