Breadboard Power Supply Module 3.3V/5V

Breadboard Power Supply Module 3.3V/5V

Description This is a Breadboard Power Supply Module 3.3V/5V with a multi-purpose female USB connection and two independent power lines that may be tuned to a 5V or 3.3V output...
17 people are viewing this right now

Availability: In stock

Ask For Price
SKU: ATC-2276
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Breadboard
View full product details

Description

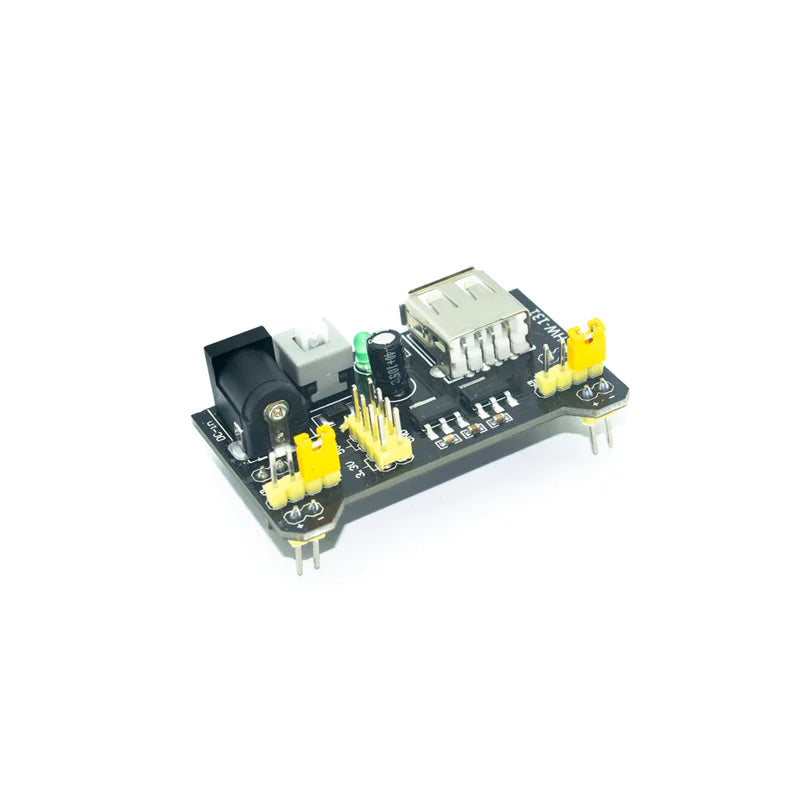

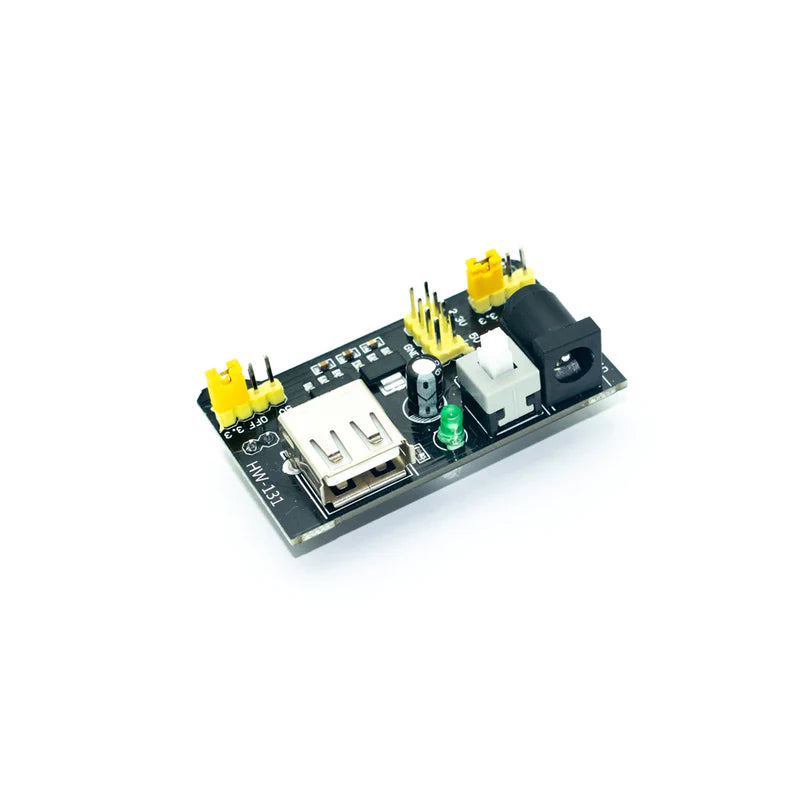

This is a Breadboard Power Supply Module 3.3V/5V with a multi-purpose female USB connection and two independent power lines that may be tuned to a 5V or 3.3V output voltage or turned off completely. The ON/OFF switch on the module is used to turn it on and off. The Breadboard Power Supply Module 3.3V/5V securely fits in a typical 400 or 800 tie points breadboard, and it also has reverse polarity protection. It accepts 6.5V to 12V input and outputs 3.3V and +5V.

Features

  • Designed to fit the standard MB102 breadboard
  • Power Supply comes with On/Off Switch
  • Green LED power indication
  • Built-in protection against short-circuit through power limiting circuitry
  • compatible with 5V, 3.3V
  • Input Voltage: 6.5-12V (DC) or USB power
  • Output voltage: 3.3V, 5V
  • switchable Maximum Output Current: <700ma
  • The two-way independent control
  • The output voltage can be switched to 0V, 3.3V, 5V
  • On-board Two sets of 3.3V, 5V DC output pins, which lets you connect directly to external circuits and to multiple breadboards.
SPECIFICATION
Input Voltage 6.5-12V
Output Voltage 3.3V/5V
Max. Output Current 700mA
Dimension 53x32x23mm
Model MB102
Short Circuit Protection Yes
