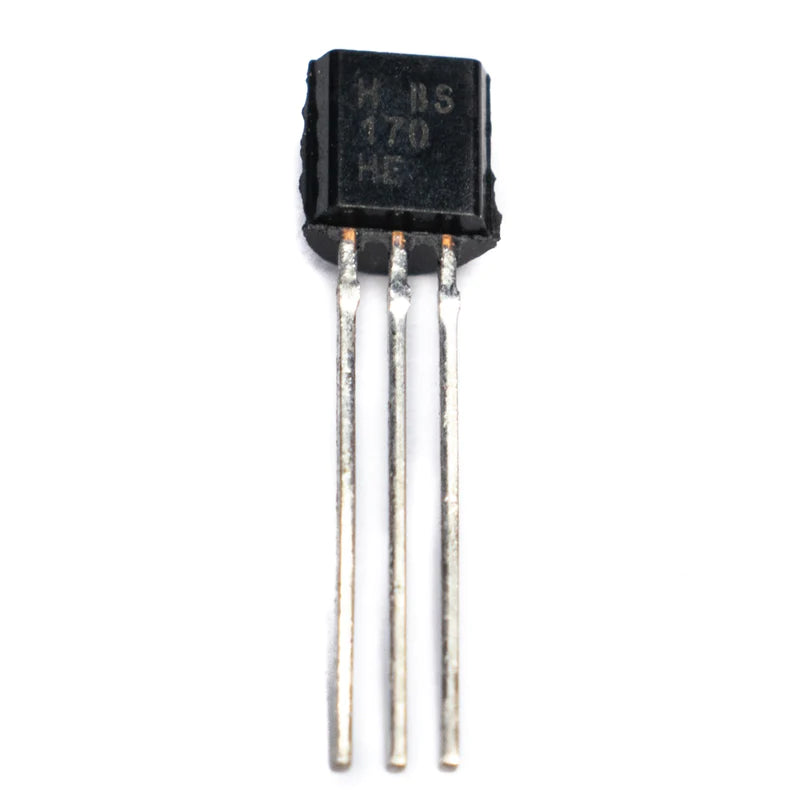

BS170 N-Channel MOSFET TO-92 Package

BS170 N-Channel MOSFET TO-92 Package

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The BS170N is a small signal N-channel Enhancement Mode MOSFET. It is made using high cell DMOS technology to minimize conduction loss, provide superior switching performance, and withstand extreme...
25 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3687
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

The BS170N is a small signal N-channel Enhancement Mode MOSFET. It is made using high cell DMOS technology to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It offers stable, quick switching performance and is suitable for use in AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency, tiny servo motor control circuits, power MOSFET gate drivers, and other switching applications. The BS170N transistor has a drain to source voltage of 60V and a constant drain current of 500mA. It features a 2.5-ohm on-state resistance and can tolerate peak currents of up to 1200mA.

Features

  • Fast Switching Speed
  • High Input Impedance
  • CMOS Logic Compatible Input
  • No Thermal Runaway or Secondary Breakdown
  • Voltage controlled small signal switch
  • Drain-source voltage: max. 60V
  • Gate-source voltage: max. 15V
  • Drain current (DC): max. 500 mA
  • High saturation current capability
  • Operating temperature: -55°C to +150 °C
SPECIFICATIONS
Transistor Polarity N-Channel
Number of Channel 1
Drain Source Breakdown Voltage (Vds) 60V
Continuous Drain Current (Id) 500mA
Drain Source Resistance (Rds) 5 ohm
Gate Source Voltage(Vgs) 20V
Power Dissipation 350mW
Package TO-92
