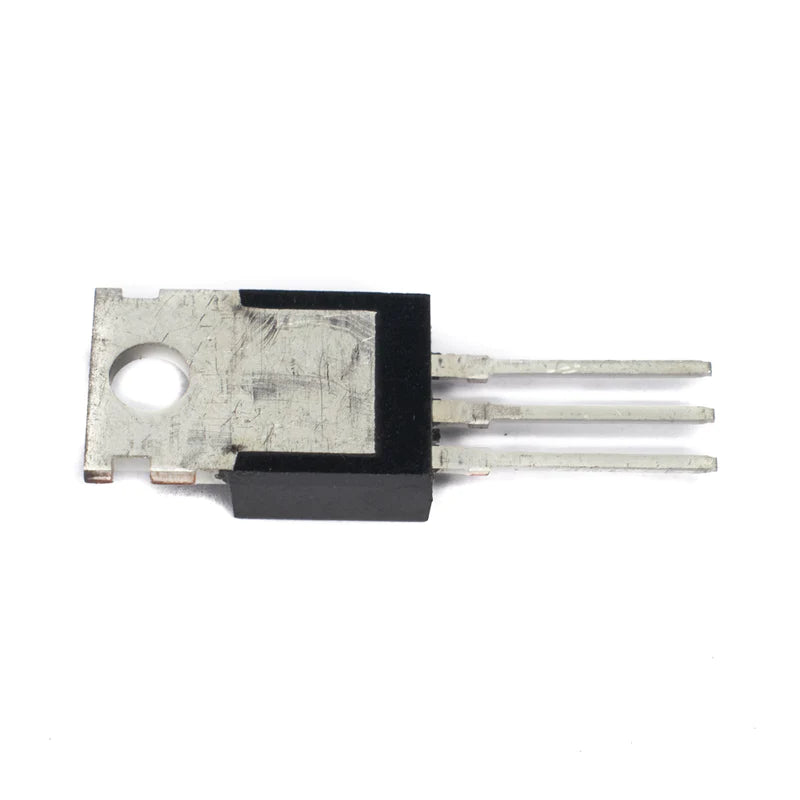

BT136 600 V 4A Triac TO-220

BT136 600 V 4A Triac TO-220

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The BT136 is TRIAC with 4 A maximum terminal current. The gate threshold voltage of the BT136 is also very less so can be driven by digital circuits. Since TRIACs...
15 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3711
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

The BT136 is TRIAC with 4 A maximum terminal current. The gate threshold voltage of the BT136 is also very less so can be driven by digital circuits. Since TRIACs are bi-directional switching devices they are commonly used for switching AC applications. To switch off control of an AC load that consumes less than 6 A with a digital device like a microcontroller or microprocessor then BT136 is the best choice.
Features

  • It has a highly sensitive gate
  • It is suitable for uses in mains appliance control
  • BT136 is a 4 amp which can be used as like switch for your home electric appliance which is 220 V operated We can use it to control the switch of your fan, led light.

Applications

  • AC Light dimmers
  • Strode lights
  • AC motor speed control
  • Noise coupling circuits
  • Controlling AC loads using MCU/MPU
  • Ac/DC Power control
  • Light dimmers
  • Washing machines
  • Motor control
  • Hand tools
SPECIFICATION
Type Triac
Non Repetitive On-State Current 27 A
Rated Repetitive Off-State Voltage VDRM 600 V
Off-State Leakage Current @ VDRM IDRM 100 uA
On-State Voltage 1.7 V
Package
TO-220-3
