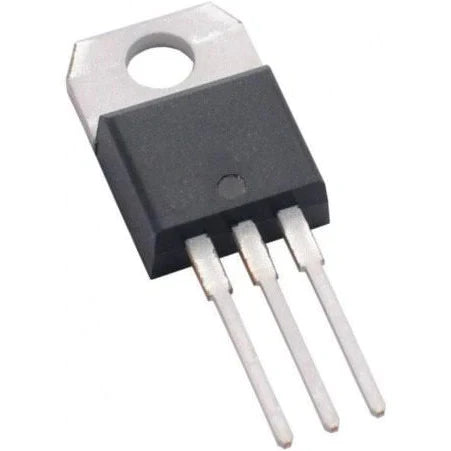

BTA20-700 Triac STMicroelectronics TO-220-3

BTA20-700 Triac STMicroelectronics TO-220-3

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The BTA20 Triacs use high-performance glass passivated chip technology. The Snubberless concept offers suppression of the RC network and is suitable for applications such as phase control and static...
24 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3683
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

The BTA20 Triacs use high-performance glass passivated chip technology. The Snubberless concept offers suppression of the RC network and is suitable for applications such as phase control and static switching on inductive or resistive load. Thanks to their clip assembly technique, the BTA20 Triacs provide superior performance in surge current handling capabilities.

SPECIFICATIONS
Brand  STMicroelectronics
Series BTA20-700
Non Repetitive On-State Current 210A
Rated Repetitive OFF-State Voltage (VDRM) 700V
Off-State Leakage Current @ VDRM IDRM 10uA
On-State Voltage 1.7V
Max. Holding Current 50mA
Gate Trigger Voltage (Vgt) 1.5V
Gate Trigger Current (Igt) 35mA
Operating Temperature -40°C to 125°C
Mounting Style Through Hole
Package TO-220-3
Product Type Triac
Subcategory Thyristors
