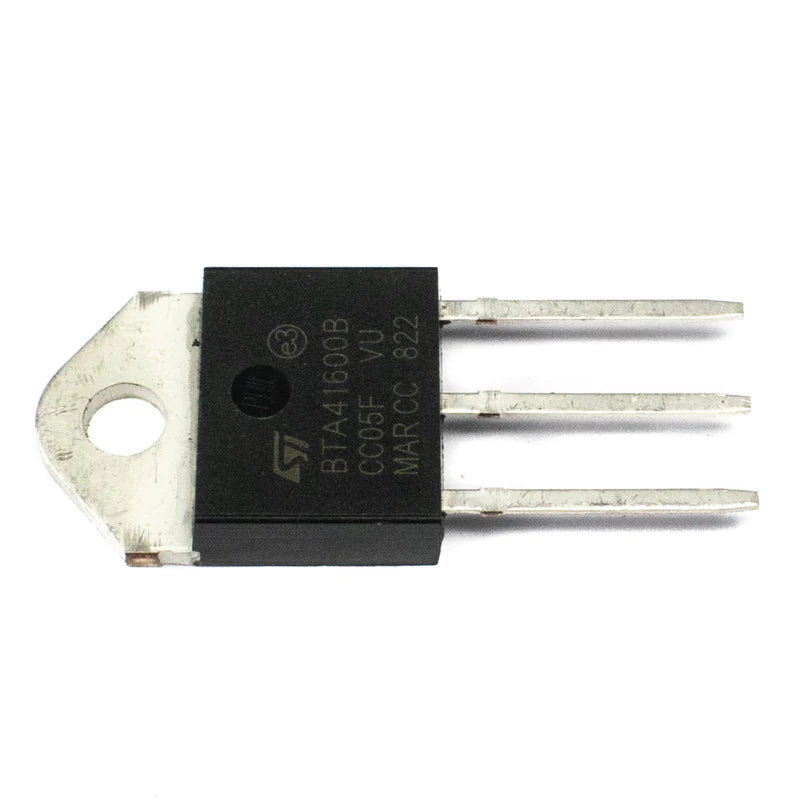

BTA41-600B 600V Triac

BTA41-600B 600V Triac

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description Available in high power packages, the BTA/BTB40-41 series is used for general purpose AC switching. This is mainly used in static relays, induction motor starting circuits. This triac can...
21 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3689
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

Available in high power packages, the BTA/BTB40-41 series is used for general purpose AC switching. This is mainly used in static relays, induction motor starting circuits. This triac can also be used in phase control operations in light dimmer circuits and motor speed controllers.

Features

  • High current TRIAC
  • Low thermal resistance with clip bonding
  • High commutation capability
  • BTA series UL1557 certified (File ref: 81734)
  • Packages are RoHS (2002/95/EC) compliant

Applications

  • On/off function in static relays, heating regulation, induction motor starting circuits
  • Phase control operations in light dimmers, motor speed controllers, and similar
SPECIFICATIONS
Repetitive peak off-state voltage 600V
RMS on-state current 41A
Non-repetitive peak on-state current 400A
Peak gate current 8A
Storage temperature -40 to 150  °C
Peak gate power 40W
Triggering Gate Current 50mA
package TOP3
