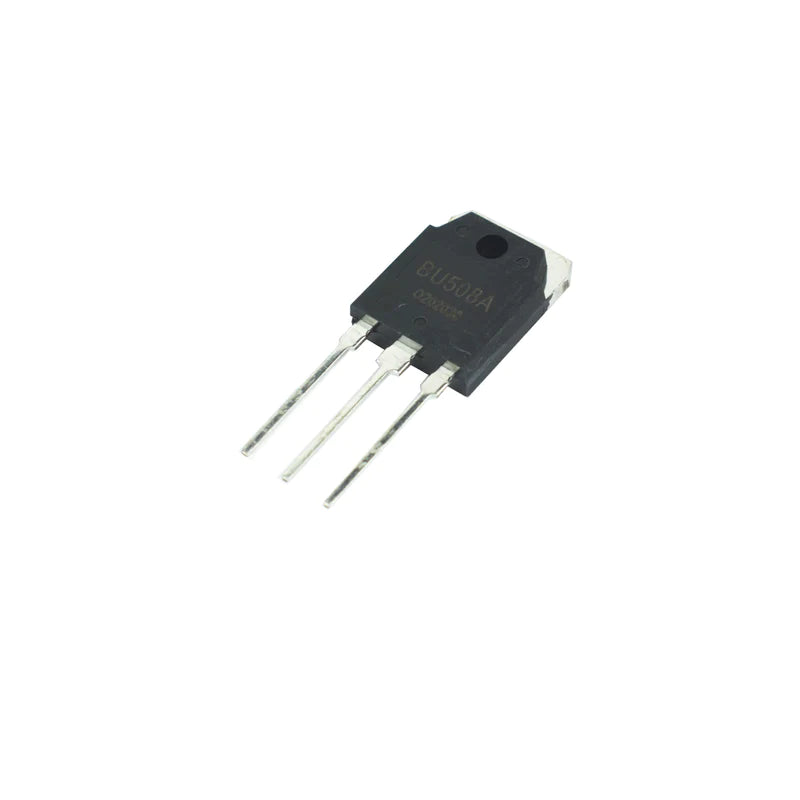

BU508A 700V 5A Silicon NPN High voltage Fast Switching Power Transistor

BU508A 700V 5A Silicon NPN High voltage Fast Switching Power Transistor

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description BU508A is an NPN triple diffused silicon power transistor. The Collector current "Ic" is a function of the base current "Ib", a variation in base current gives a corresponding...
25 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3563
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Power Transistor
View full product details

Description

BU508A is an NPN triple diffused silicon power transistor. The Collector current "Ic" is a function of the base current "Ib", a variation in base current gives a corresponding amplified variation in the collector current for a given collector-emitter voltage "Vce". It is specifically designed for use in large screen color deflection circuits.

SPECIFICATIONS
 Model  BU508A
 Type NPN
 Collector-Base Voltage (VCBO) 1500V
 Collector-Emitter Voltage (VCEO) 700V
 Junction Temperature 150 (degree C)
 Storage Temperature -55~150 (degree C)
 Power Dissipation 50W
Mounting Type  Through Hole
