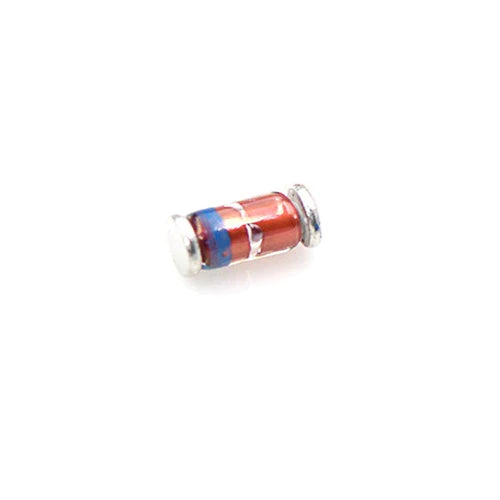

BVZ55C4V7 4.4V - 5V Voltage Regulator Diode

BVZ55C4V7 4.4V - 5V Voltage Regulator Diode

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description Voltage regulator diodes utilize the reverse characteristics of a PN junction. When raising reverse voltage of PN junction diodes, high current starts flowing at a certain voltage, and constant...
15 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3489
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Zener Diode
View full product details

Description

Voltage regulator diodes utilize the reverse characteristics of a PN junction. When raising reverse voltage of PN junction diodes, high current starts flowing at a certain voltage, and constant voltage can be obtained. (This phenomenon is called breakdown and this voltage is called breakdown voltage. BVZ55 series are low-power voltage regulator diodes which come in small hermetically sealed glass SOD80 Surface-Mounted Device (SMD) package. The diodes are offered in tolerance ranges of about 5% (BZV55-C) . There are 37 different varieties in the series, with nominal working voltages ranging from 2.4 V to 75 V. This kind of voltage regulator is suitable for general regulating purposes.

Features :-

  • Total power dissipation: 500mW
  • Low differential resistance
  • Two tolerance series: 2% and 5%
SPECIFICATIONS
Parameter Values
Model BZV55C4V7
Supply Voltage 4.4 V - 5 V
Differential resistance 425 W - 500 W at Iz=1 mA
50 W - 80 W at Iz=5 mA
Temperature Coefficient -3.5 mV/K – 0.2 mV/K
Diode Capacitance 300 pF
Non-repetitive peak reverse current 6.0 A
Junction Temperature -60°C - 200°C
Storage Temperature -60°C - 200°C
Total Power Dissipation 400 mW -  500 mW
Forward Current 250 mA
Non-Repetitive Peak Reverse Power Dissipation 40 W
Package SOD80
