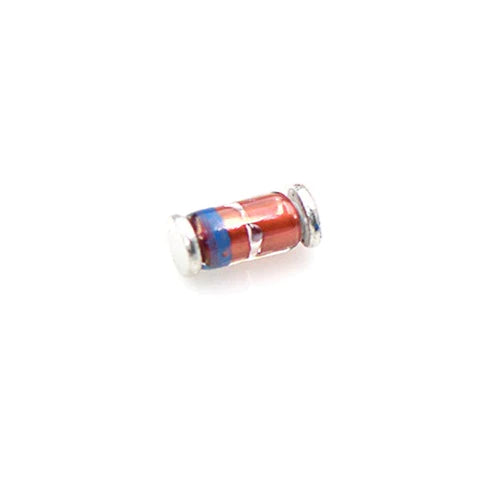

BZV55C15 15V Zener Diode 500mW 5% Tolerance SOD80 Package

BZV55C15 15V Zener Diode 500mW 5% Tolerance SOD80 Package

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description This is the BZV55C15 Zener diode. A Zener Diode is a semiconductor device that is used to conduct current either in the forward or reverse direction. The diode consists of a special,...
17 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3491
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Zener Diode
View full product details

Description

This is the BZV55C15 Zener diode. A Zener Diode is a semiconductor device that is used to conduct current either in the forward or reverse direction. The diode consists of a special, heavily doped p-n junction, designed to conduct in the reverse direction when a certain specified voltage (Zener voltage) is reached. Every Zener diode has a well defined reverse breakdown voltage after which it starts conducting current in reverse bias mode without getting damaged. This is known as the Zener voltage. The device has a Zener voltage of 15V and a standard tolerance on the normal Zener voltage of ±5%. This means that the Zener voltage of the diode varies by about ±5% of the actual value mentioned in practical applications.

Features

  • Zener impedance is low
  • Tolerance selection of ±5%
  • Surface mounted applications to optimize board space

Applications

  • Low voltage stabilizers or voltage references
  • Adapters for laptop charging
  • An important component in clipper circuits
  • On-board DC/DC converter
SPECIFICATIONS
Model BZV55C15
Tolerance ±5%
Zener Voltage 15V
Power dissipation 500mW
Impedance at Test Current 110Ω at 1mA
Junction Temperature -65°C~175°C
Storage Temperature  -65°C~175°C
Package SOD80
