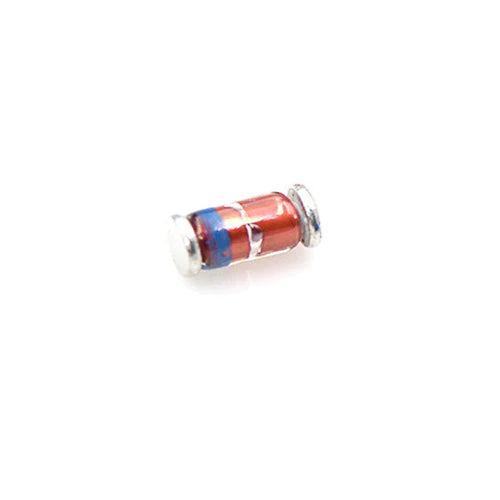

BZV55C3V3 3.3V 500mW Voltage Regulator Zener Diode

BZV55C3V3 3.3V 500mW Voltage Regulator Zener Diode

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The Voltage regulator diode BZV55-C3V3 makes use of the PN junction's reversal properties. PN junction diodes' reverse voltage can be increased to the point where a strong current begins...
25 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3492
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Zener Diode
View full product details

Description

The Voltage regulator diode BZV55-C3V3 makes use of the PN junction's reversal properties. PN junction diodes' reverse voltage can be increased to the point where a strong current begins to flow and constant voltage is attained. Both this occurrence and this voltage are referred to as breakdown phenomena. This property is actively used by voltage regulator diodes. Voltage regulator diodes are also referred to as Zener diodes since this breakdown voltage is also known as the Zener voltage. This voltage can be used as a reference voltage for electrical circuits or as a constant voltage power source.
Voltage regulation, reference elements, surge suppressors, switching applications, and clipper circuits all make use of Zener diodes.

Features

  • Non-repetitive peak reverse power dissipation: <= 40 W
  • Total power dissipation:  500 mW
  • Two tolerance series: 2 % and 5 %
  • Wide working voltage range: nominal 2.4 V to 75 V
  • Low differential resistance
SPECIFICATIONS
Model BZV55-C3V3
Type Voltage regulator diodes
Package Style SOD80
Forward current(max) 250 mA
Zener Voltage 3.3 V
Power dissipation 500 mW
reverse current at VR = 1V 5 µA
Forward voltage IF = 10 mA 0.9 V
