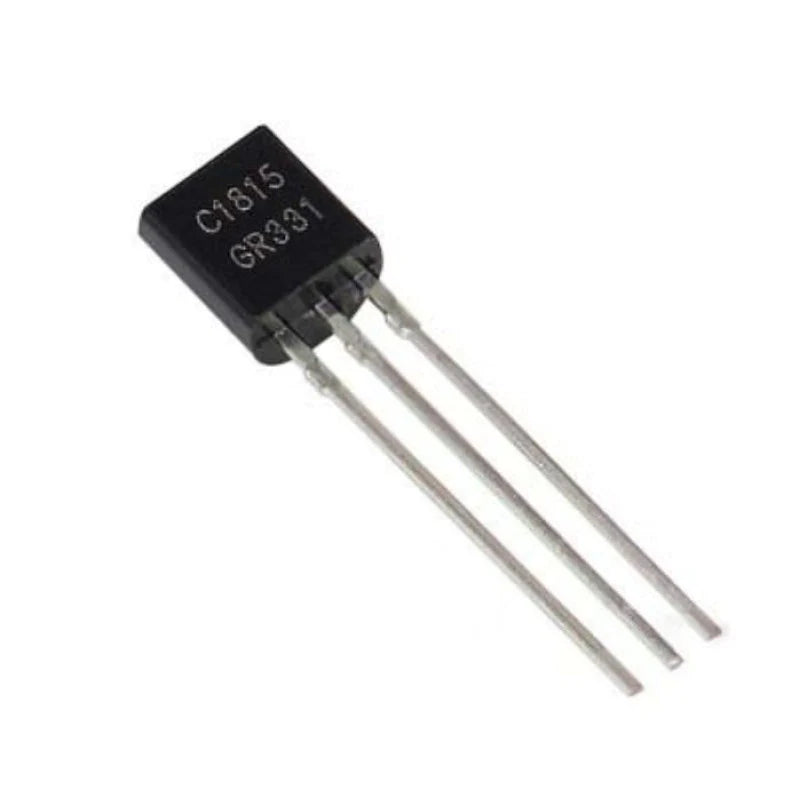

C1815 NPN Audio Frequency Amplifier Transistor

C1815 NPN Audio Frequency Amplifier Transistor

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The C1815 transistor is commonly utilized in both commercial and educational projects. It's made for high-frequency OSC and audio frequency amplification. The transistor's collector-base voltage is 50V, therefore it...
17 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3538
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

The C1815 transistor is commonly utilized in both commercial and educational projects. It's made for high-frequency OSC and audio frequency amplification. The transistor's collector-base voltage is 50V, therefore it can be utilized in circuits with less than 50V DC. Because the transistor's collector current is 150 mA, it can drive any load that is less than 150 mA. The collector power dissipation and DC current gain values of the transistor are quite good due to which it is ideal to use in audio amplification and electronic signal amplification purposes. Moreover, it can also be used as a switch to drive loads under 150mA.

APPLICATIONS:

  • Sensor Circuits
  • Audio Preamplifiers
  • Audio Amplifier Stages
  • Switching Loads under 150mA
  • RF Circuits

FEATURES:

  • It can drive any load that is less than 150 mA
  • Its collector current is 150mA
  • Its  Collector-Emitter Voltage  (VCE) 50V
  • Its power dissipation is 400mW
SPECIFICATION
Package Type TO-92
Transistor Type NPN
Max. Collector Current (IC) 150mA
Max. Collector-Emitter Voltage  (VCE) 50V
Max. Collector-Base Voltage (VCB) 60V
Max. Emitter Base Voltage (VEBO) 5V
Power Dissipation 400mW
Max. Transition Frequency 80MHz
Minimum and Maximum DC Current Gain (hFE) 70-700
Operating Temperature -55°C to 150°C
