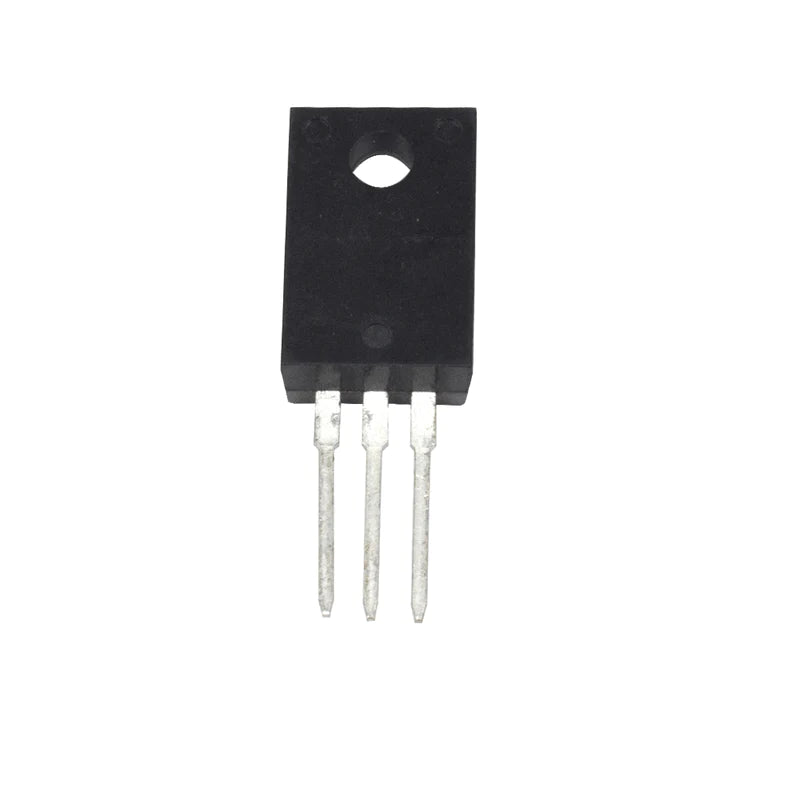

CFF12N65 12A,650V N channel MOSFET

CFF12N65 12A,650V N channel MOSFET

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The CFF12N65 is an N-channel enhancement mode power MOS field effect transistor made by Silicon using their unique F-Cell TM structure VDMOS technology. The upgraded method and cell structure...
16 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3633
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

The CFF12N65 is an N-channel enhancement mode power MOS field effect transistor made by Silicon using their unique F-Cell TM structure VDMOS technology. The upgraded method and cell structure have been specifically designed to reduce on-state resistance, offer more excellent switching performance, and withstand high energy pulse in the avalanche and commutation mode. These components are frequently found in AC-DC power supplies, DC-DC converters, and H-bridge PWM motor drivers.

Features

  • It's used in switching operation

  • Its maximum reverse voltage is 650

  • It's maximum forward current is 12A

  • Low leakage current

  • It can improve dv/dT

  • 100% avalanche energy rated
SPECIFICATION
Model CFF12N65
Type MOSFET
Package TO-220-FL
Reverse Voltage 650V
Max Drain current 12A
Drain current pulsed 48A
Total power dissipation 210W
Operating and Storage Temperature Range -55°C TO 150°C
