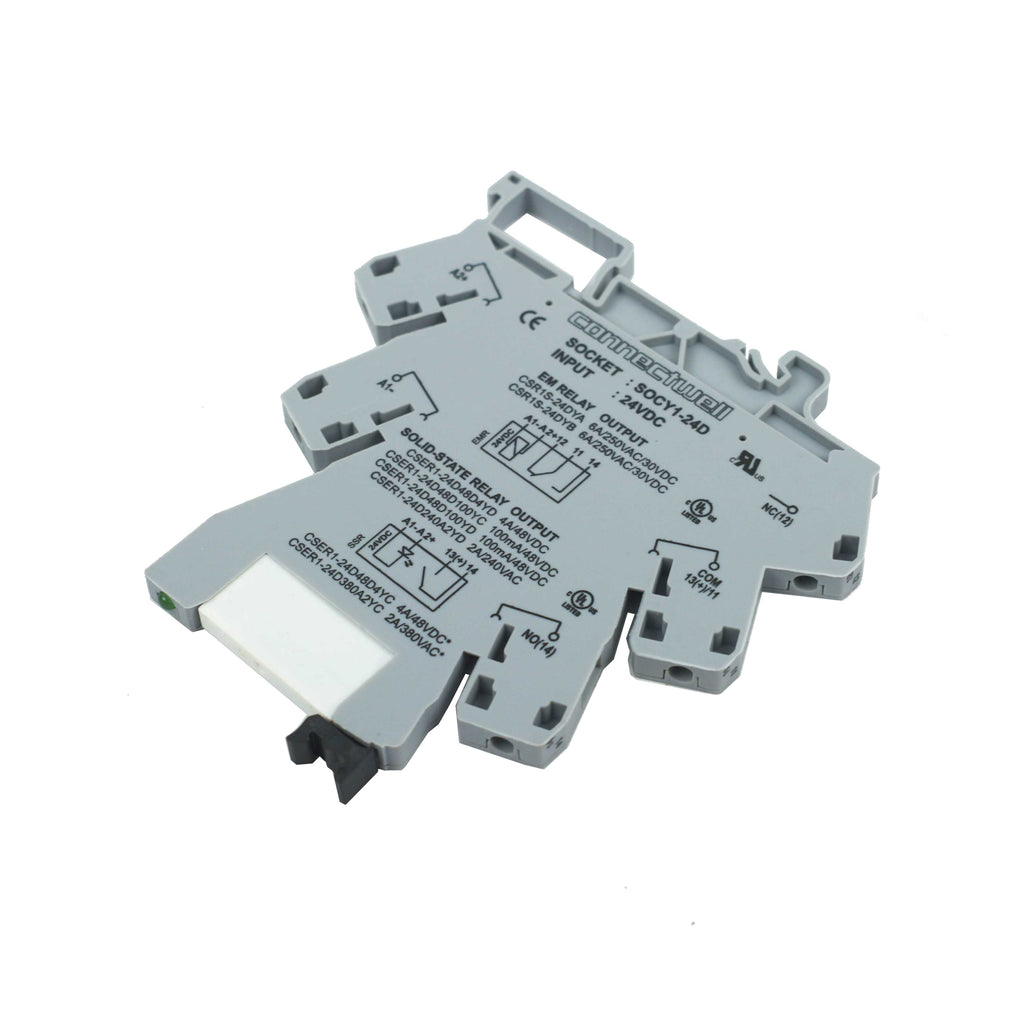

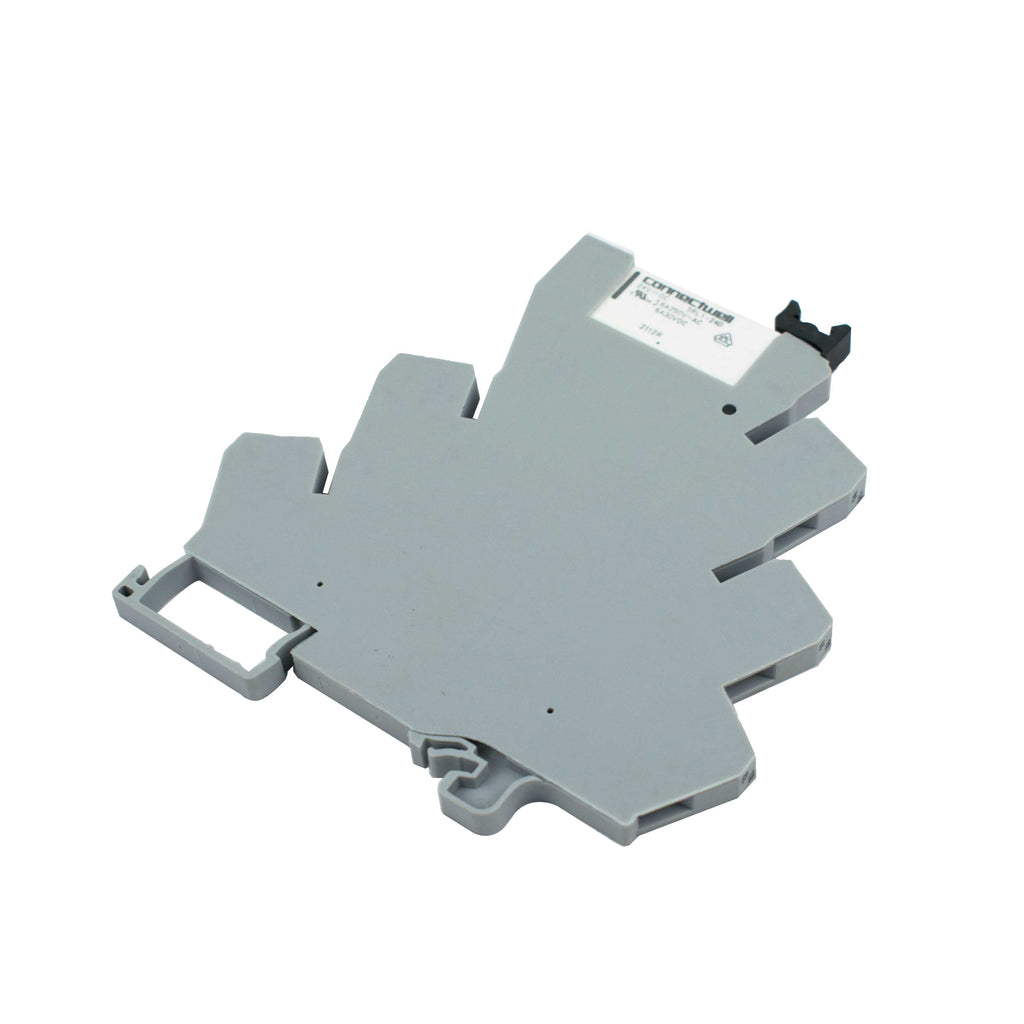

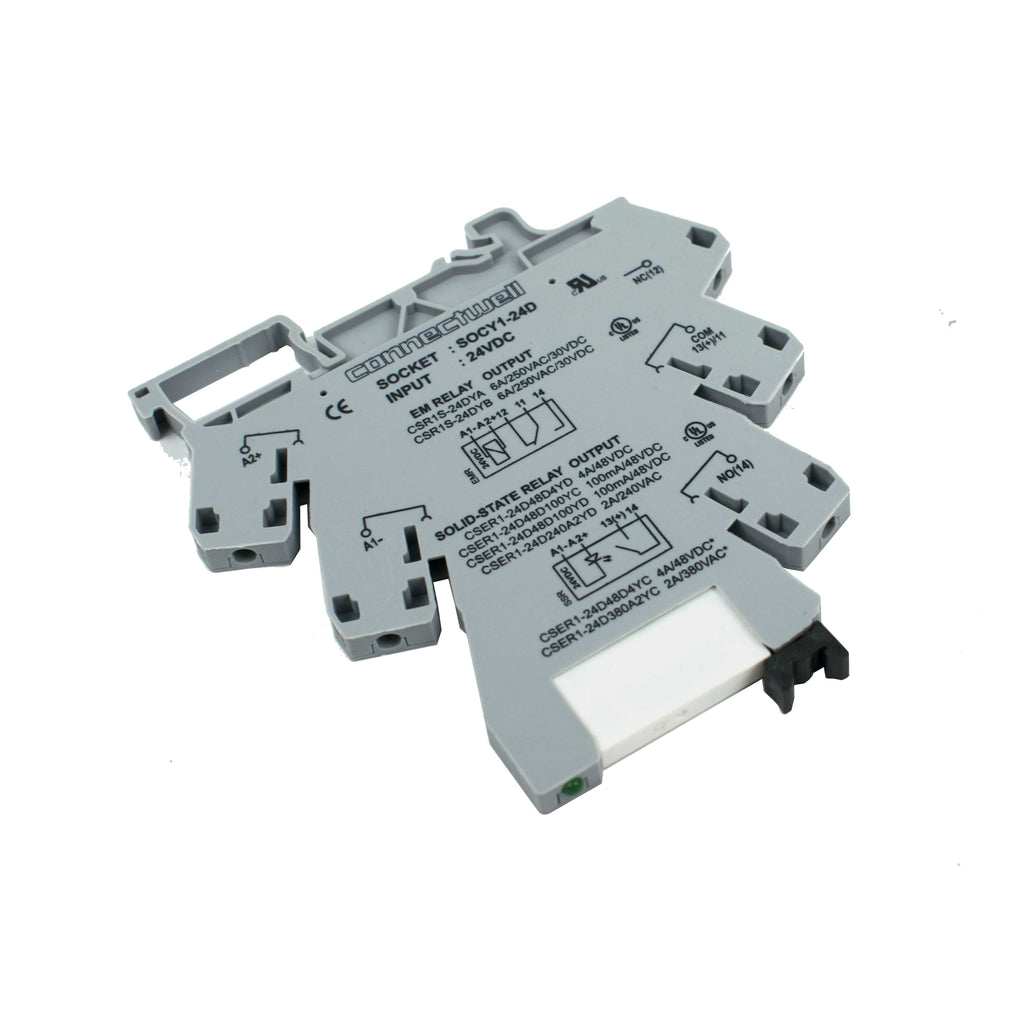

Connectwell 24V 6A Slim Relay Module SOCY1-24D

Connectwell 24V 6A Slim Relay Module SOCY1-24D

Description It's a 24V 6A Slim Relay Module. It has nominal operating voltage 24v DC and nominal input current 8 mA, resistance of coil are 3390ohm.  Features Compact 6.0mm thin design....
16 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2319
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Relay Module
View full product details

Description

It's a 24V 6A Slim Relay Module. It has nominal operating voltage 24v DC and nominal input current 8 mA, resistance of coil are 3390ohm.

Features

  1. Compact 6.0mm thin design.
  2. Variety of Operating Voltages.
  3. High switching current: up to 6A at 250VAC
  4. Low coil power consumption: 175 mW.
  5. LED Indication on Coil activation.
  6. No requirement on the polarity of input voltage (except 5 VDC &24VDC Relay).
  7. Possibility of Jumpering up to 8 channels with a single link.
  8. Easy Legibility marker
  9. Choice of Pluggable Electromechanical Relays Or Solid State Relays.
  10. Choice of Screw & Spring Clamp Connection
  11. Special Snubber-based Slim Relays are Available.
  12. Integrated Input Protection.
SPECIFICATIONS

Bussing Possibility

By Using Push-in Jumper

Relay on Indication

3mm Green LED

Ambient Operating Temperature

-40 to +55 °C

Mounting Possibility

DIN 35/DIN 35-15 Rail

Housing Material

PA 6,6

Housing Colour

Gray

Rated Voltage

24 VDC

Input Polarity Protection

Reverse Polarity Protection, Rectifier based Protection.

Relay type

Electromechanical



RELAY Input/Coil Specifications

Nominal Operating Voltage

24 VDC

Nominal Input Current

8 mA

Must Operate Voltage

15.9 VDC

Must Release Voltage

1.2 VDC

Nominal Input Power

170 mW

Coil Resistance

3390 Ω


Dimensions

Type of Connection

Screw Connection

Min. Wire Size

0.2 mm²

Max. Wire Size

2.5 mm²

Min. Wire Size(AWG)

24 AWG

Max. Wire Size(AWG)

12 AWG

Wire Stripping Length

10 mm

Torque

0.4 Nm
