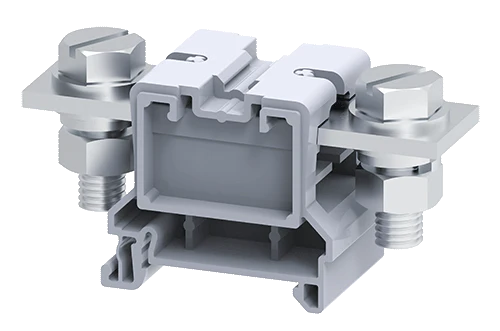

Connectwell CBB95 95 sq.mm Stud Type Power Terminal Blocks

Connectwell CBB95 95 sq.mm Stud Type Power Terminal Blocks

Description The Connect well CBB95 is a 95mm² Feed through Bolt/Nut Type Terminal Block in Grey color. CBB series Terminal Blocks are recommended for use with wires with a large cross-section. The Wire...
16 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2491
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: PVC Terminals
View full product details

Description

The Connect well CBB95 is a 95mm² Feed through Bolt/Nut Type Terminal Block in Grey color. CBB series Terminal Blocks are recommended for use with wires with a large cross-section. The Wire is crimped to a ring/fork lug and screwed onto the Terminal Block's flat current bar.


SPECIFICATIONS
Rated Voltage 1000V
Housing Material Polyamide
Rated Current 232A

Tightening Torque

10 Nm

Product Function

Feed Through

Wire Entry Orientation

Side

Mounting Possibilities

DIN 35/DIN 35-15 Rail

Screw Size

M10

Rated Surge Voltage

8 kV

Pollution Degree

3



Dimensions

Height with DIN 35 * 15mm rail

54.5mm

Height with DIN 35 * 7.5mm rail

47.3mm

Length

92mm

Width(Thickness)

38mm
