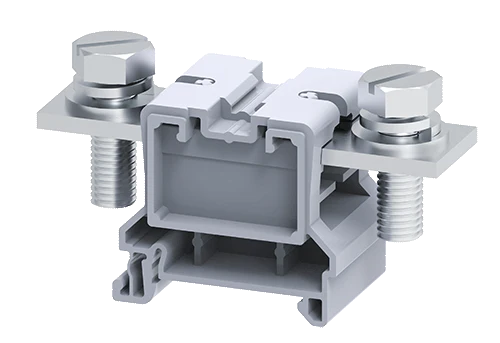

Connectwell CBB95LS 95 sq mm Feed through Slotted Bolt Type Terminal Block

Connectwell CBB95LS 95 sq mm Feed through Slotted Bolt Type Terminal Block

 Description The Connectwell CBB95LS is a 95 mm² Feed through Slotted Bolt Type Terminal Block in Grey color. CBB series Terminal Blocks are recommended for applications involving large cross-section wires. The...
18 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2501
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: PVC Terminals
View full product details


Description

The Connectwell CBB95LS is a 95 mm² Feed through Slotted Bolt Type Terminal Block in Grey color. CBB series Terminal Blocks are recommended for applications involving large cross-section wires. The wire is crimped to a ring/fork lug and screwed onto the Terminal Block's flat current bar.


SPECIFICATIONS
Rated Voltage 1000V
Housing Material Polyamide
Rated Current 232A

Tightening Torque

10 Nm

Product Function

Feed Through

Wire Entry Orientation

Side

Mounting Possibilities

DIN 35/DIN 35-15 Rail

Screw Size

M10

Operated by

Screw Driver

Rated Surge Voltage

8 kV

Pollution Degree

3



Dimensions

Height with DIN 35 * 15mm rail

54.5mm

Height with DIN 35 * 7.5mm rail

47.5mm

Length

92mm

Width(Thickness)

38mm
