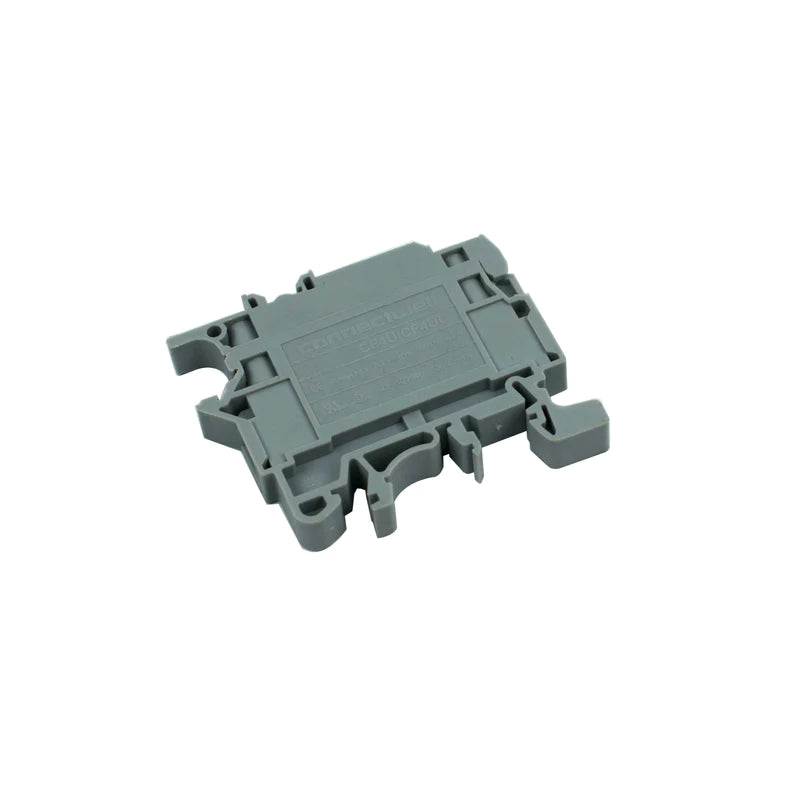

Connectwell CF4U 4 sq.mm Single Level Fuse Terminal Blocks

Connectwell CF4U 4 sq.mm Single Level Fuse Terminal Blocks

Description These Terminal Blocks are used in electrical and control systems which require fuse protection. The CF series accepts industry standard 5 x 20 mm and 5 x 25 mm...
26 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2492
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: PVC Terminals
View full product details

Description

These Terminal Blocks are used in electrical and control systems which require fuse protection. The CF series accepts industry standard 5 x 20 mm and 5 x 25 mm glass cartridge fuses. These blocks are completely closed and do not need a separate end plate.

SPECIFICATIONS
Rated Voltage 800V
Rated Current 6.3A
Tightening Torque 0.5Nm
Housing material Polymide
Function Single Level Fuse
Wire Entry Orientation Side Entry
Mounting Possibility 32/DIN 35/DIN 35-15 Rail
Screw Size M3
Operated by Screwdriver
Rated Surge Voltage 8kV
