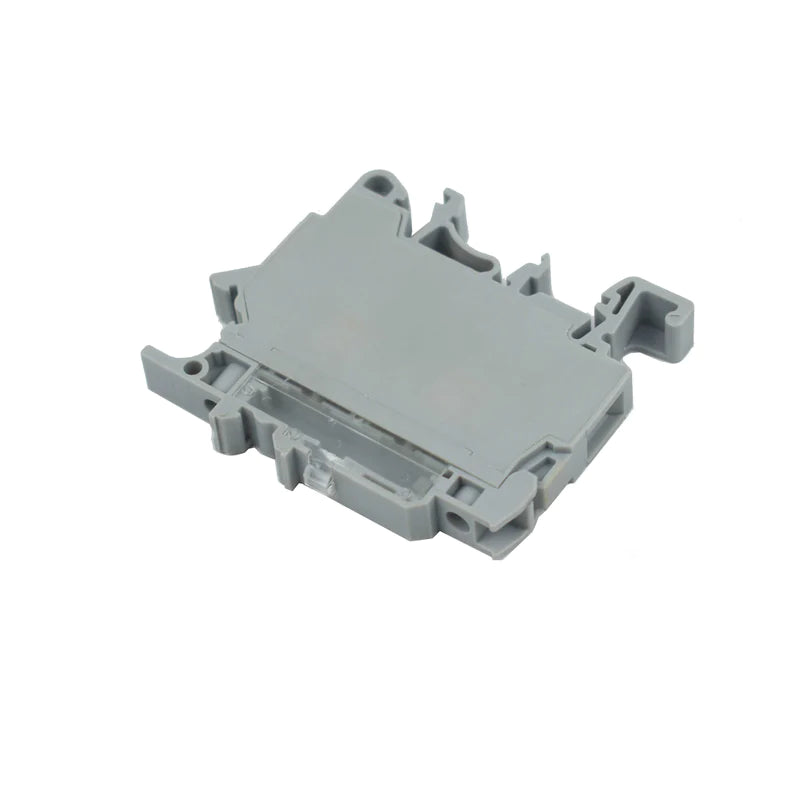

Connectwell CF4UL110-240V 4sq mm Ø5X20mm Fuse Screw Clamp Terminal 1000V 6.3A with LED

Connectwell CF4UL110-240V 4sq mm Ø5X20mm Fuse Screw Clamp Terminal 1000V 6.3A with LED

Description This Terminal Block is used in electrical and control systems which require fuse protection. The 4mm² Ø5X20mm FUSE SCREW CLAMP TERMINAL  accepts industry standard 5 x 20 mm glass cartridge...
15 people are viewing this right now

AvailabilityOut of stock

Ask For Price
SKU: ATC-2499
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: PVC Terminals
View full product details

Description

This Terminal Block is used in electrical and control systems which require fuse protection. The 4mm² Ø5X20mm FUSE SCREW CLAMP TERMINAL  accepts industry standard 5 x 20 mm glass cartridge fuses. It is completely closed and does not need a separate end plate.

SPECIFICATIONS
Model CF4UL110-240V
Rated Voltage 1000 V
Rated Current 6.3 A
Tightening Torque 0.5 Nm
Housing Material Polyamide
Product Function Single Level Fuse
Wire Entry Orientation Side Entry
Mounting Possibility DIN 32/DIN 35/DIN 35-15 Rail
Screw Size M3
Operated by Screwdriver
Rated Surge Voltage 8 KV
Pollution Degree 3
Manufacturer Connectwell
