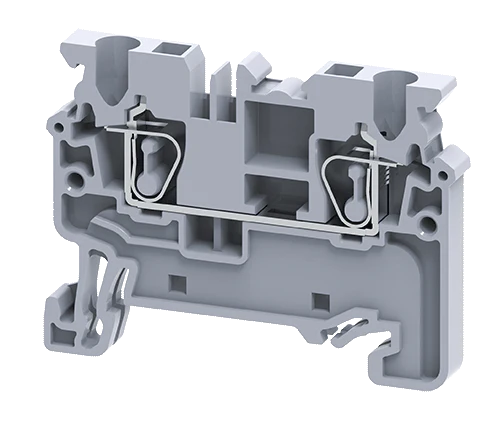

Connectwell CX2.5 2.5 sq mm Spring Clamp Feed Through Terminal Blocks

Connectwell CX2.5 2.5 sq mm Spring Clamp Feed Through Terminal Blocks

Description The Connectwell CX2.5 is a 2.5 mm² Feed Thru the Spring Clamp Terminal block. The Spring Clamp is operated by inserting a screwdriver into an opening in the spring clamp to...
23 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2486
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: PVC Terminals
View full product details

Description

The Connectwell CX2.5 is a 2.5 mm² Feed Thru the Spring Clamp Terminal block. The Spring Clamp is operated by inserting a screwdriver into an opening in the spring clamp to gain access to the wire. When the screwdriver is removed, the inserted wire is clamped to the current bar.


SPECIFICATIONS
Rated Voltage 1000V
Housing Material Polyamide
Rated Current 24A

Tightening Torque

10 Nm

Product Function Feed Through

Wire Entry Orientation

Top

Mounting Possibilities

DIN 35/DIN 35-15 Rail

Operated by

Screw Driver

Rated Surge Voltage

8 kV

Pollution Degree

3



Dimensions

Height with DIN 35 * 15mm rail

45.7mm

Height with DIN 35 * 7.5mm rail

38mm

Length

50mm

Width(Thickness)

5mm
