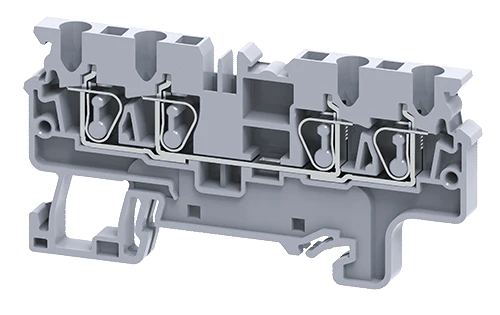

The Connectwell CX2.5/4 is a 2.5 mm² Feed Thru Spring Clamp 4 Wire Terminal Block in Grey color. The Spring Clamp is operated by inserting a screwdriver into an opening in the spring clamp to gain access to the wire. When the screwdriver is removed, the inserted wire is clamped to the current bar.
| Rated Voltage | 1000V |
| Housing Material | Polyamide |
| Rated Current | 24A |
| Product Function | Feed Through |
|
Wire Entry Orientation |
Top |
|
Mounting Possibilities |
DIN 35/DIN 35-15 Rail |
|
Operated by |
Screw Driver |
|
Rated Surge Voltage |
8 kV |
|
Pollution Degree |
3 |
Dimensions
| Height with DIN 35 * 15mm rail |
45.2mm |
|
Height with DIN 35 * 7.5mm rail |
37.6mm |
|
Length |
74.7mm |
|
Width(Thickness) |
5mm |
