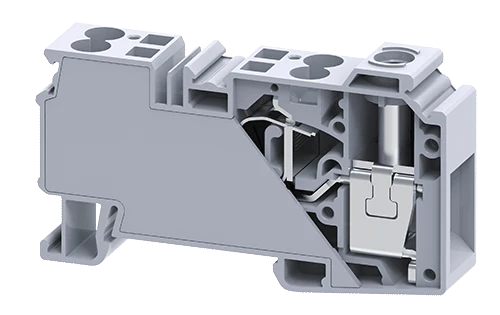

Connectwell CXDB35/10 35sq.mm Input 10 sq mm Output Hybrid Terminal

Connectwell CXDB35/10 35sq.mm Input 10 sq mm Output Hybrid Terminal

Description The Connectwell CXDB35/10 is a Modular Distribution Block with 10mm² Output connections and 35mm² Input connections. The CXDB distribution block family is an excellent choice for a simplified distribution system. The incoming...
24 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2480
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: PVC Terminals
View full product details

Description

The Connectwell CXDB35/10 is a Modular Distribution Block with 10mm² Output connections and 35mm² Input connections. The CXDB distribution block family is an excellent choice for a simplified distribution system. The incoming cable is connected to the block via a screw clamp. All of the terminals are internally connected and offer multiple connections for the incoming wires. The incoming connection is effectively shrouded by a protective shield.


SPECIFICATIONS
Rated Voltage 1000V
Housing Material Polyamide
Rated Current Input Side 125A
Rated Current Output Side 41A
Tightening Torque Input Side 2.5 Nm
Product Function Compact Distribution Block

Wire Entry Orientation

Top

Mounting Possibilities

DIN 35/DIN 35-15 Rail

Operated by

Screw Driver

Rated Surge Voltage

8 kV

Pollution Degree

3



Dimensions

Height with DIN 35 * 15mm rail

54.3mm

Height with DIN 35 * 7.5mm rail

46.8mm

Length

81.6mm

Width(Thickness)

16mm
