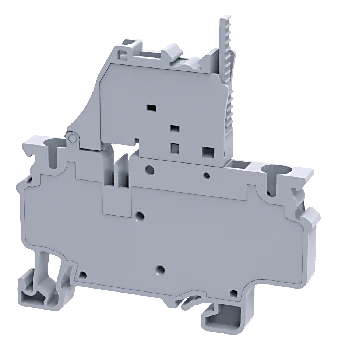

Connectwell CXF4 4 sq.mm Spring Clamp Fuse Terminal Block

Connectwell CXF4 4 sq.mm Spring Clamp Fuse Terminal Block

Description The Connectwell CXF4 is a 4mm² Ø5X20mm Spring Clamp Fuse Terminal Block in grey color. The Spring Clamp is operated by inserting a screwdriver into an opening in the spring clamp...
25 people are viewing this right now

AvailabilityOut of stock

Ask For Price
SKU: ATC-2481
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: PVC Terminals
View full product details

Description

The Connectwell CXF4 is a 4mm² Ø5X20mm Spring Clamp Fuse Terminal Block in grey color. The Spring Clamp is operated by inserting a screwdriver into an opening in the spring clamp to gain access to the wire. When the screwdriver is removed, the inserted wire is clamped to the current bar.


Specification

  • Rated Voltage :- 1000V
  • Housing Material :- Polyamide
  • Rated Current :- 10A
  • Product Function :- Single Level Fuse
  • Wire Entry Orientation :- Top
  • Mounting Possibilities :- DIN 35/DIN 35-15 Rail
  • Operated by :- Screw Driver
  • Rated Surge Voltage :- 8 kV
  • Pollution Degree :- 3

Dimensions

  • Height with DIN 32 rail :- 68mm
  • Height with DIN 35 * 15mm rail :- 61.3mm
  • Height with DIN 35 * 7.5mm rail :- 65.4mm
  • Length :- 6mm
  • Width(Thickness) :- 6mm

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
