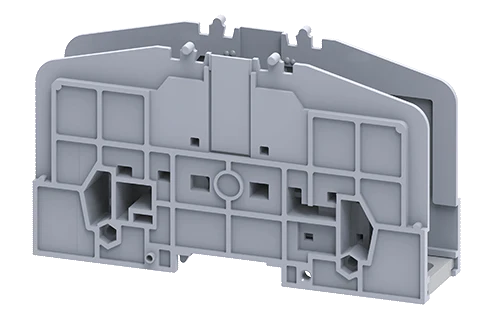

Connectwell PTB70/95 95 sq.mm Stud Type Power Terminal Blocks

Connectwell PTB70/95 95 sq.mm Stud Type Power Terminal Blocks

Description The Connectwell PTB70/95 95 mm² is a Feed Thru Barrier Type Bolt Terminal Block. PTB series Terminal Blocks are recommended for applications involving large cross-section wires. The wire is crimped to...
23 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2487
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: PVC Terminals
View full product details

Description

The Connectwell PTB70/95 95 mm² is a Feed Thru Barrier Type Bolt Terminal Block. PTB series Terminal Blocks are recommended for applications involving large cross-section wires. The wire is crimped to a ring/fork lug and screwed onto the Terminal Block's flat current bar. The Terminal Block is held rigidly on the Mounting Rail by specially designed Mounting Feet. Two Lugs of the rated cross-section can be connected to the Terminal Block without adversely affecting the Terminal Block's safety. A hinged protective cover on the PTB35SH and PTB70SH Terminal Blocks makes the Terminal Block shockproof (finger safe) and has a marker recess to accept a marking tag.


SPECIFICATIONS
Rated Voltage 1000V
Housing Material Polyamide
Rated Current 232A

Tightening Torque

10 Nm

Product Function Power Terminal Block

Wire Entry Orientation

Side Entry

Mounting Possibilities

DIN 35/DIN 35-15 Rail

Screw Size

M8

Operated by

Nut Driver

Rated Surge Voltage

8 kV

Pollution Degree

3



Dimensions

Height with DIN 35 * 15mm rail

84.5mm

Height with DIN 35 * 7.5mm rail

76.6mm

Length

130mm

Width(Thickness)

32mm
