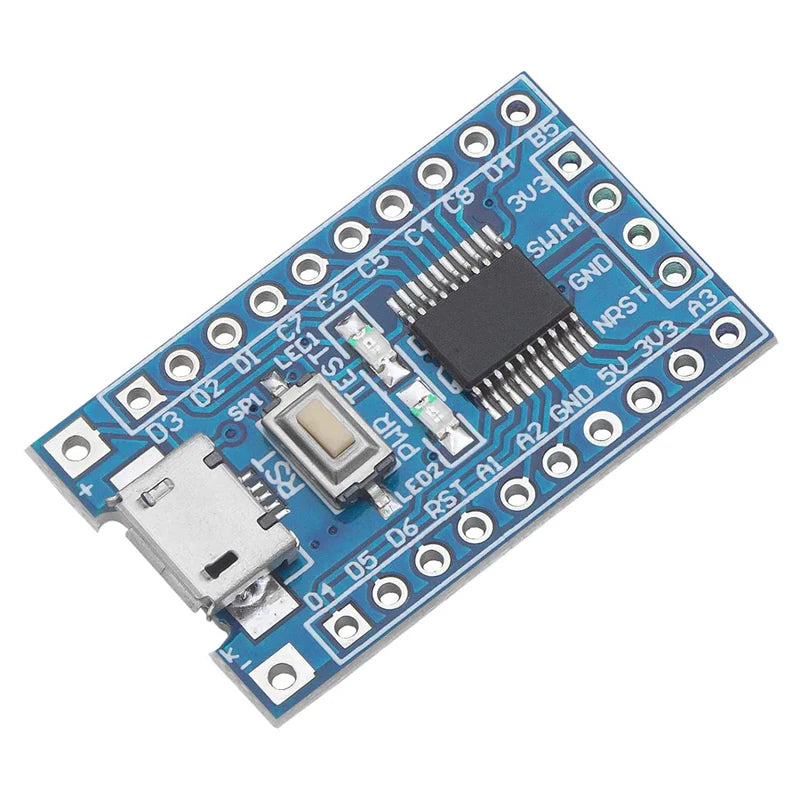

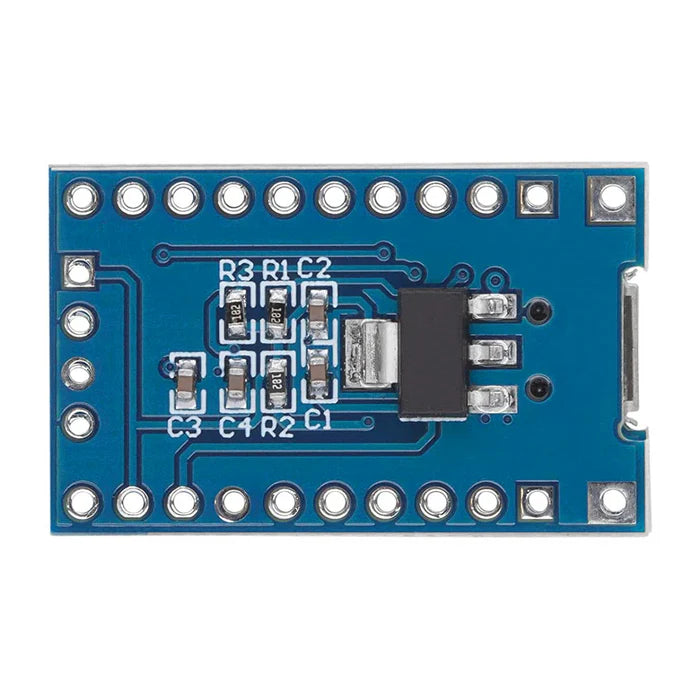

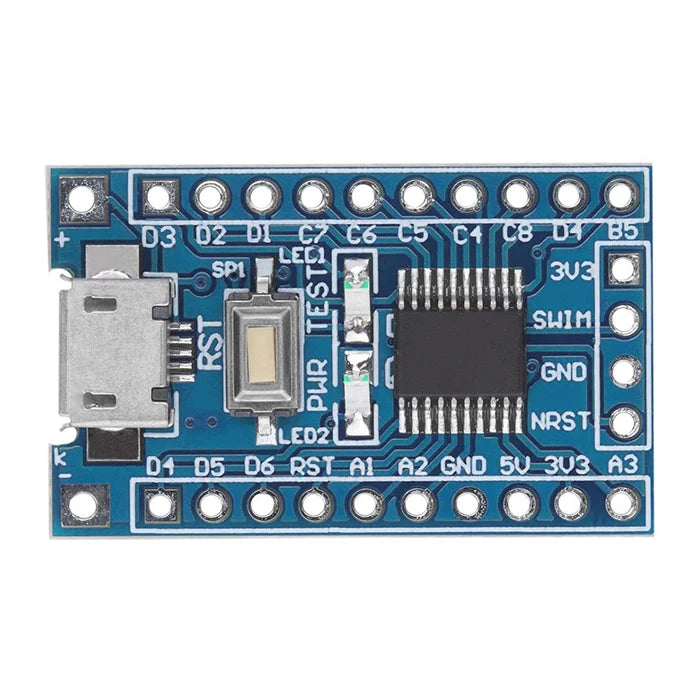

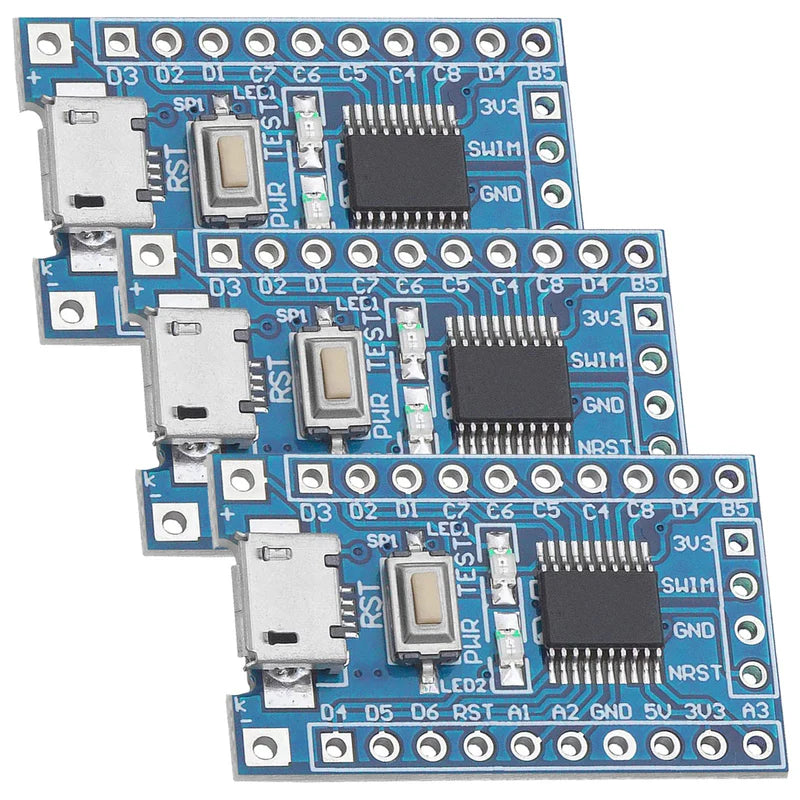

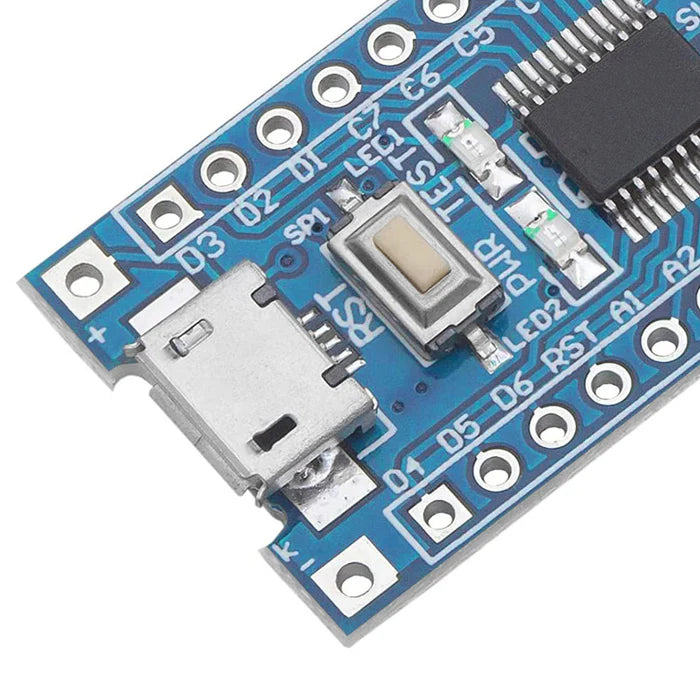

Core STM8S103F3P6 Development Board with Micro USB

Core STM8S103F3P6 Development Board with Micro USB

Description This is a Micro USB STM8S103F3P6 Development Board that uses Micro USB for power and communication with programmers. This Development Board has an 8-bit microcontroller from ST Microelectronics STM8S103F3P6 is a rugged, high performance microcontroller unit with UART, I2C, SPI, and a 5-channel 10-bit ADC. It supports SWIM debug mode. In their inbuild...
21 people are viewing this right now

Availability: In stock

Ask For Price
SKU: ATC-3436
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Miscellaneous Development Board Modules
View full product details

Description

This is a Micro USB STM8S103F3P6 Development Board that uses Micro USB for power and communication with programmers. This Development Board has an 8-bit microcontroller from ST Microelectronics STM8S103F3P6 is a rugged, high performance microcontroller unit with UART, I2C, SPI, and a 5-channel 10-bit ADC. It supports SWIM debug mode. In their inbuild components: MicroUSB input, Reset button, IC and LED indicators.
Features
  • Indicator LEDs
  • Minimum System Board
  • Micro USB line is compatible
Note: 5V-Pin is an input voltage of the module.

SPECIFICATIONS
Model/Name Core Board STM8S103F3P6 Development Board
Type Development Board
Reset Button Yes
Interface Micro USB
Input Voltage  4.5 - 15 V
Output Voltage 3.3V
Size 30mm*19mm*3.5mm
